原创严少安 2023-03-08

1157

pg菜鸟入门学习中，欢迎各位大佬留言技术指导。

题记

对于某个技能点、知识点，没有实验或者没有质量的实验，都只是纸上谈兵。

今天在群里请教了一个问题，

pg里日志轮转有什么比较优雅的办法？
手动触发日志轮转除了 pg_rotate_logfile()还有别的方法么？
手动触发日志归档，而不用等定时轮转 log_roration_age，或者测试只看新的日志，我现在就只能把老的删掉，再触发生成新的。

当时的情况其实是，日志文件命名的粒度为“小时” (log_filename = postgresql-%y-%m-%d_%h.log)。
所以执行 pg_rotate_logfile 时，并没任何反应。

日志轮转

postgresql 提供了两种方式进行日志轮转：

pg_ctl logrotate – pg工具，可在 postgres 用户直接执行，日志会自动轮转并生成新日志文件。也可以加 -s 参数，静默执行。

[postgres@centos7 log]$ pg_ctl logrotate
server signaled to rotate log file
[postgres@centos7 log]$
[postgres@centos7 log]$ pg_ctl logrotate -s
[postgres@centos7 log]$

pg_rotate_logfile() – pg系统方法，需要 superuser 权限。

(postgres@[local]) [postgres] 23:01:45# select pg_rotate_logfile();
 -------------------
| pg_rotate_logfile |
 -------------------
| t                 |
 -------------------
(1 row)
[postgres@centos7 log]$ psql -u sbtest -d postgres
psql (15.2-yan)
type "help" for help.
(sbtest@[local]) [postgres] 23:03:20> select pg_rotate_logfile();
error:  permission denied for function pg_rotate_logfile
time: 0.726 ms
(sbtest@[local]) [postgres] 23:03:53> \dg
                                    list of roles
 ----------- ------------------------------------------------------------ -----------
| role name |                         attributes                         | member of |
 ----------- ------------------------------------------------------------ -----------
| postgres  | superuser, create role, create db, replication, bypass rls | {}        |
| sbtest    |                                                            | {}        |
 ----------- ------------------------------------------------------------ -----------

不过，需要注意，需要 postgresql 已经开启 logging_collector。

此外，还可以通过插件 adminpack 或者 pgadmin 工具进行日志文件管理。

再者，可以使用操作系统层工具 logrotate 对日志文件进行定时轮转。

一般 json 日志

json 格式的日志非常适合记录结构化数据，因为它易于读取和处理。另外，由于 json 格式的日志只是普通的文本文件，所以可以使用任何文本编辑器或命令行工具来查看和处理。
以下是一个示例 json 格式的日志条目：

{
  "timestamp": "2022-02-23t14:30:00z",
  "level": "info",
  "message": "user login",
  "user_id": "1234",
  "ip_address": "192.168.1.1"
}

在这个示例中，日志包含了时间戳、日志级别、事件消息、用户id和ip地址。这些属性可以通过解析json格式的日志条目来轻松地提取和分析。
使用 json 格式的日志有许多优点，例如易于使用、易于读取和解析、可扩展性好等。因此，json 格式的日志在现代应用程序中非常流行。

这里介绍一个格式化 json 的工具 - - jq。

jq 可以以各种方式转换 json，可以选择、迭代、缩减或分解 json 文档。例如，运行命令 jq ´map(.price) | add´ 将接受一个 json 对象数组作为输入，并返回它们的 “price” 字段的和。
jq 也可以接受文本输入，但默认情况下，jq 从 stdin 读取 json 实体流(包括数字和其他文字)。
例如，上例就可由 jq 将普通文本从 stdin 读取，并进行格式化。

$ echo '{"timestamp": "2022-02-23t14:30:00z","level": "info","message": "user login","user_id": "1234","ip_address": "192.168.1.1"}' | jq
{
  "timestamp": "2022-02-23t14:30:00z",
  "level": "info",
  "message": "user login",
  "user_id": "1234",
  "ip_address": "192.168.1.1"
}

postgresql 15 中的 jsonlog 日志文件

json 格式的日志文件，是 postgresql 15 的新特性之一。

https://www.postgresql.org/docs/release/15.0/
postgresql 15 contains many new features and enhancements, including:
…
support for structured server log output using the json format.
…
allow log output in json format (sehrope sarkuni, michael paquier)
the new setting is log_destination = jsonlog.

“实践是检验真理的唯一标准”

先来看日志输出格式示例：

{"timestamp":"2023-03-08 20:29:31.596 cst","pid":1254,"session_id":"64087fab.4e6","line_num":1,"session_start":"2023-03-08 20:29:31 cst","txid":0,"error_severity":"log","message":"ending log output to stderr","hint":"future log output will go to log destination \"csvlog, jsonlog\".","backend_type":"postmaster","query_id":0}
{"timestamp":"2023-03-08 20:54:29.431 cst","pid":1945,"remote_host":"192.168.8.121","remote_port":47620,"session_id":"64088585.799","line_num":1,"ps":"","session_start":"2023-03-08 20:54:29 cst","txid":0,"error_severity":"log","message":"connection received: host=192.168.8.121 port=47620","backend_type":"not initialized","query_id":0}
{"timestamp":"2023-03-08 20:54:29.432 cst","user":"sbtest","dbname":"postgres","pid":1945,"remote_host":"192.168.8.121","remote_port":47620,"session_id":"64088585.799","line_num":2,"ps":"authentication","session_start":"2023-03-08 20:54:29 cst","vxid":"3/83","txid":0,"error_severity":"log","message":"connection authorized: user=sbtest database=postgres application_name=psql","backend_type":"client backend","query_id":0}
{"timestamp":"2023-03-08 20:54:29.434 cst","user":"sbtest","dbname":"postgres","pid":1943,"remote_host":"192.168.8.121","remote_port":47618,"session_id":"64088579.797","line_num":3,"ps":"idle","session_start":"2023-03-08 20:54:17 cst","txid":0,"error_severity":"log","message":"disconnection: session time: 0:00:11.618 user=sbtest database=postgres host=192.168.8.121 port=47618","application_name":"psql","backend_type":"client backend","query_id":0}

对照传统日志文件和 csv 格式日志文件查看。

- log
a:, u:, d:, r:, h:, b:postmaster, p:1254, p:, t:2023-03-08 20:29:31 cst, m:2023-03-08 20:29:31.596 cst, n:1678278571.596, q:0, i:, e:00000, c:64087fab.4e6, l:3, s:2023-03-08 20:29:31 cst, v:, x:0, q:log:  ending log output to stderr
a:, u:, d:, r:, h:, b:postmaster, p:1254, p:, t:2023-03-08 20:29:31 cst, m:2023-03-08 20:29:31.596 cst, n:1678278571.596, q:0, i:, e:00000, c:64087fab.4e6, l:4, s:2023-03-08 20:29:31 cst, v:, x:0, q:hint:  future log output will go to log destination "csvlog, jsonlog".
- csv
2023-03-08 20:29:31.596 cst,,,1254,,64087fab.4e6,1,,2023-03-08 20:29:31 cst,,0,log,00000,"ending log output to stderr",,"future log output will go to log destination ""csvlog, jsonlog"".",,,,,,,"","postmaster",,0

至少可以观测到三点：

json 格式日志由于自身属性原因，日志大小会大于 csv 格式，甚至大小翻倍。
但是，json 格式的有点也很明显，对于各种日志分析系统友好，不需要再转格式，也不会出现 csv 多行转换的问题。
json/csv 的格式相对固定，而传统日志的格式可以自定义。

由于我目前还是 pg 入门级选手，对于第三点，也是在反复实验中发现，log_line_prefix 参数设定并不会影响到 json/csv 格式文件。
同时，查阅源码 (src\backend\utils\error*log.c) 后这一推测得到验证。

传统日志文件可以自定义格式，同时指定了一些特殊值，便于定制化编排日志格式，上文的实例中就是按照这种格式进行编排：

log_line_prefix = 'a:%a, u:%u, d:%d, r:%r, h:%h, b:%b, p:%p, p:%p, t:%t, m:%m, n:%n, q:%q, i:%i, e:%e, c:%c, l:%l, s:%s, v:%v, x:%x, q:%q'

经过若干小时的梳理，已将传统日志和 json 日志的字段对应整理如下：

# special values:
#   %a = application name                               -> json : application_name (psql, heidisql)
#   %u = user name                                      -> json : user
#   %d = database name                                  -> json : dbname
#   %r = remote host and port                           -> json : remote_host, remote_port
#   %h = remote host                                    -> json : remote_host ([local])
#   %b = backend type                                   -> json : backend_type (postmaster, not initialized, client backend)
#   %p = process id                                     -> json : pid
#   %p = process id of parallel group leader            -> json : leader_pid
#   %t = timestamp without milliseconds                 -> json : --
#   %m = timestamp with milliseconds                    -> json : timestamp
#   %n = timestamp with milliseconds (as a unix epoch)  -> json : --
#   %q = query id (0 if none or not computed)           -> json : query_id
#   %i = command tag                                    -> json : ps (authentication, idle, alter system, select)
#   %e = sql state                                      -> json : state_code
#   %c = session id                                     -> json : session_id (%lx.%x)
#   %l = session line number                            -> json : line_num
#   %s = session start timestamp                        -> json : session_start
#   %v = virtual transaction id                         -> json : vxid (%d/%u)
#   %x = transaction id (0 if none)                     -> json : txid
#   %q = stop here in non-session                       -> json : message, hint, detail, context

json 日志仍有若干字段未匹配：

error_severity (log, error)
internal_query, internal_position
statement, cursor_position
func_name, file_name, file_line_num

关于 json 日志，上文提到的多行展示，可以参考如下示例：

截取一段日志内容

{"timestamp":"2023-03-08 23:41:48.152 cst","user":"postgres","dbname":"postgres","pid":4601,"remote_host":"[local]","session_id":"6408ac11.11f9","line_num":6,"ps":"idle","session_start":"2023-03-08 23:38:57 cst","vxid":"3/5","txid":0,"error_severity":"log","message":"statement: select d.datname as \"name\",\n       pg_catalog.pg_get_userbyid(d.datdba) as \"owner\",\n       pg_catalog.pg_encoding_to_char(d.encoding) as \"encoding\",\n       d.datcollate as \"collate\",\n       d.datctype as \"ctype\",\n       d.daticulocale as \"icu locale\",\n       case d.datlocprovider when 'c' then 'libc' when 'i' then 'icu' end as \"locale provider\",\n       pg_catalog.array_to_string(d.datacl, e'\\n') as \"access privileges\"\nfrom pg_catalog.pg_database d\norder by 1;","application_name":"psql","backend_type":"client backend","query_id":0}

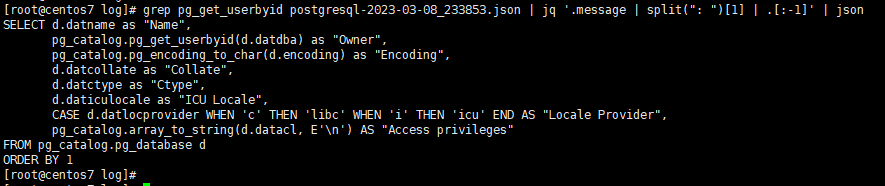

将日志中的 message 字段中的 statement 查询语句提取出来，并进行过滤、转化，可得到以下结果。

[root@centos7 log]# grep pg_get_userbyid postgresql-2023-03-08_233853.json | jq '.message | split(": ")[1] | .[:-1]' | json
select d.datname as "name",
       pg_catalog.pg_get_userbyid(d.datdba) as "owner",
       pg_catalog.pg_encoding_to_char(d.encoding) as "encoding",
       d.datcollate as "collate",
       d.datctype as "ctype",
       d.daticulocale as "icu locale",
       case d.datlocprovider when 'c' then 'libc' when 'i' then 'icu' end as "locale provider",
       pg_catalog.array_to_string(d.datacl, e'\n') as "access privileges"
from pg_catalog.pg_database d
order by 1
[root@centos7 log]#
