以下操作过程适合新人练手，搭建、更新补丁、配置归档等等都是日常操作内容。后续我将本套vmware虚拟机环境、操作手册、各种安装包上传供新手学习，如有问题，请留言。
一、系统环境准备
| 系统版本 | 主机名 | 网卡（桥接） | public ip | 网卡（仅主机） | private ip | vip | scan ip | 实例名 |
|---|---|---|---|---|---|---|---|---|
| centos7.4 | rac1 | ens33 | 172.22.180.221 | ens34 | 10.0.0.1 | 172.22.180.223 | 172.22.180.225 | rac1 |
| centos7.4 | rac2 | ens33 | 172.22.180.222 | ens34 | 10.0.0.2 | 172.22.180.224 | 172.22.180.225 | rac2 |
以下操作在两台节点都执行，以节点1 为例
1，创建用户和组、配置主机名
[root@rac1 ~]# /usr/sbin/groupadd -g 5001 oinstall
[root@rac1 ~]# /usr/sbin/groupadd -g 5002 dba
[root@rac1 ~]# /usr/sbin/groupadd -g 5003 oper
[root@rac1 ~]# /usr/sbin/groupadd -g 5004 asmadmin
[root@rac1 ~]# /usr/sbin/groupadd -g 5005 asmoper
[root@rac1 ~]# /usr/sbin/groupadd -g 5006 asmdba
[root@rac1 ~]# /usr/sbin/useradd -u 6001 -g oinstall -g dba,asmdba,oper oracle
[root@rac1 ~]# /usr/sbin/useradd -u 6002 -g oinstall -g asmadmin,asmdba,asmoper,oper,dba grid
[root@rac1 ~]# echo "grid" | passwd --stdin grid
[root@rac1 ~]# echo "oracle" | passwd --stdin oracle
[root@rac1 ~]# vi /etc/hosts
#public ip
172.22.180.221 rac1
172.22.180.222 rac2
#private ip
10.0.0.1 rac1-priv
10.0.0.2 rac2-priv
#vip
172.22.180.223 rac1-vip
172.22.180.224 rac2-vip
#scanip
172.22.180.225 scan
2，创建目录
[root@rac1 ~]# mkdir -p /oracle/app/grid
[root@rac1 ~]# mkdir -p /oracle/app/11.2.0/grid
[root@rac1 ~]# chown -r grid:oinstall /oracle
[root@rac1 ~]# mkdir -p /oracle/app/orainventory
[root@rac1 ~]# chown -r grid:oinstall /oracle/app/orainventory/
[root@rac1 ~]# mkdir -p /oracle/app/oracle
[root@rac1 ~]# chown -r oracle:oinstall /oracle/app/oracle/
[root@rac1 ~]# chmod -r 755 /oracle/
[root@rac1 ~]# mkdir -p /tmp/soft
3，配置本地yum源、安装包
[root@rac1 ~]# mount /dev/cdrom /mnt
[root@rac1 ~]# cd /etc/yum.repos.d
[root@rac1 yum.repos.d]# mkdir bk
[root@rac1 yum.repos.d]# mv *.repo bk/
[root@rac1 yum.repos.d]# echo "[el]" >> /etc/yum.repos.d/local.repo
[root@rac1 yum.repos.d]# echo "name =linux 7.x dvd" >> /etc/yum.repos.d/local.repo
[root@rac1 yum.repos.d]# echo "baseurl=file:///mnt" >> /etc/yum.repos.d/local.repo
[root@rac1 yum.repos.d]# echo "gpgcheck=0" >> /etc/yum.repos.d/local.repo
[root@rac1 yum.repos.d]# echo "enabled=1" >> /etc/yum.repos.d/local.repo
[root@rac1 yum.repos.d]# echo "/dev/cdrom /mnt iso9660 defaults 0 0" >> /etc/fstab
[root@rac1 yum.repos.d]# yum -y install smartmontools vnc* install autoconf automake binutils binutils-devel bison cpp dos2unix ftp gcc gcc-c lrzsz python-devel compat-db* compat-gcc-34 compat-gcc-34-c compat-libcap1 compat-libstdc -33 compat-libstdc -33.i686 glibc-* glibc-*.i686 libxpm-*.i686 libxp.so.6 libxt.so.6 libxtst.so.6 libxext libxext.i686 libxtst libxtst.i686 libx11 libx11.i686 libxau libxau.i686 libxcb libxcb.i686 libxi libxi.i686 libgcc_s.so.1 libstdc .i686 libstdc -devel libstdc -devel.i686 libaio libaio.i686 libaio-devel libaio-devel.i686 ksh libxp libaio-devel numactl numactl-devel make -y sysstat -y unixodbc unixodbc-devel elfutils-libelf-devel-0.97 elfutils-libelf-devel redhat-lsb-core unzip
[root@rac1 yum.repos.d]# yum groupinstall –y "gnome desktop" "x window system" "desktop"
[root@rac1 yum.repos.d]# rpm -ivh /tmp/soft/cvuqdisk-1.0.9-1.rpm
[root@rac1 yum.repos.d]# rpm -ivh /tmp/soft/compat-libstdc -33-3.2.3-72.el7.x86_64.rpm
[root@rac1 yum.repos.d]# rpm -e ksh-20120801-34.el7.x86_64
[root@rac1 yum.repos.d]# rpm -ivh /tmp/soft/pdksh-5.2.14-37.el5_8.1.x86_64.rpm
4，修改系统资源限制
[root@rac1 yum.repos.d]# vi /etc/security/limits.conf
新增内容如下
#oracle setting
grid soft nproc 16384
grid hard nproc 16384
grid soft nofile 65536
grid hard nofile 65536
grid soft stack 32768
grid hard stack 32768
oracle soft nproc 16384
oracle hard nproc 16384
oracle soft nofile 65536
oracle hard nofile 65536
oracle soft stack 32768
oracle hard stack 32768
oracle hard memlock 2000000
oracle soft memlock 2000000
[root@rac1 yum.repos.d]# echo "* - nproc 16384" > /etc/security/limits.d/20-nproc.conf
[root@rac1 yum.repos.d]# echo "session required pam_limits.so" >> /etc/pam.d/login
5，修改系统内核参数
[root@rac1 yum.repos.d]# vi /etc/sysctl.conf
#oracle setting
fs.aio-max-nr = 1048576
fs.file-max = 6815744
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048586
kernel.panic_on_oops = 1
vm.nr_hugepages = 400
kernel.shmmax = 1610612736
kernel.shmall = 393216
kernel.shmmni = 4096
[root@rac1 yum.repos.d]# /sbin/sysctl -p
6，关闭透明页
[root@rac1 yum.repos.d]# vi /etc/rc.d/rc.local
if test -f /sys/kernel/mm/transparent_hugepage/enabled; then
echo never > /sys/kernel/mm/transparent_hugepage/enabled
fi
if test -f /sys/kernel/mm/transparent_hugepage/defrag; then
echo never > /sys/kernel/mm/transparent_hugepage/defrag
fi
[root@rac1 yum.repos.d]# chmod x /etc/rc.d/rc.local
7，取消numa
[root@rac1 yum.repos.d]# vi /etc/default/grub
grub_cmdline_linux="crashkernel=auto rd.lvm.lv=centos/root rd.lvm.lv=centos/swap rhgb quiet numa=off"
[root@rac1 yum.repos.d]# grub2-mkconfig -o /etc/grub2.cfg
8，关闭服务
[root@rac1 yum.repos.d]# echo "selinux=disabled" > /etc/selinux/config
[root@rac1 yum.repos.d]# echo "#selinuxtype=targeted " >> /etc/selinux/config
[root@rac1 yum.repos.d]# setenforce 0
[root@rac1 yum.repos.d]# systemctl stop firewalld.service
[root@rac1 yum.repos.d]# systemctl disable firewalld.service
[root@rac1 ~]# systemctl stop networkmanager
[root@rac1 ~]# systemctl disable networkmanager
[root@rac1 ~]# ifconfig virbr0 down
[root@rac1 ~]# brctl delbr virbr0
[root@rac1 ~]# systemctl disable libvirtd
[root@rac1 ~]# systemctl restart network.service
[root@rac1 ~]# systemctl disable ntpd
[root@rac1 ~]# systemctl stop ntpd
9，修改用户环境变量、配置ssh信任
[root@rac1 ~]# vi .bash_profile
path=$path:$home/bin:/oracle/app/11.2.0/grid/bin
[root@rac1 yum.repos.d]# su - grid
[grid@rac1 ~]$ vi .bash_profile
ps1="[`whoami`@`hostname`:"'$pwd]$'
export ps1
umask 022
export tmp=/tmp
export lang=en_us
export tmpdir=$tmp
oracle_sid= asm1; export oracle_sid
oracle_term=xterm; export oracle_term
oracle_base=/oracle/app/grid; export oracle_base
oracle_home=/oracle/app/11.2.0/grid; export oracle_home
nls_date_format="yyyy-mm-dd hh24:mi:ss"; export nls_date_format
path=.:$path:$home/bin:$oracle_home/bin; export path
threads_flag=native; export threads_flag
if [ $user = "oracle" ] || [ $user = "grid" ]; then
if [ $shell = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi
[root@rac1 yum.repos.d]# su - oracle
[oracle@rac1 ~]$ vi .bash_profile
ps1="[`whoami`@`hostname`:"'$pwd]$'
export ps1
export tmp=/tmp
export lang=en_us
export tmpdir=$tmp
export oracle_unqname=orcl
oracle_base=/oracle/app/oracle; export oracle_base
oracle_home=$oracle_base/product/11.2.0/db_1; export oracle_home
oracle_sid=orcl1; export oracle_sid
oracle_term=xterm; export oracle_term
nls_date_format="yyyy-mm-dd hh24:mi:ss"; export nls_date_format
nls_lang=american_america.zhs16gbk;export nls_lang
path=.:$path:$home/bin:$oracle_base/product/11.2.0/db_1/bin:$oracle_home/bin; export path
threads_flag=native; export threads_flag
if [ $user = "oracle" ] || [ $user = "grid" ]; then
if [ $shell = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi
[root@rac1 yum.repos.d]# cd /tmp/soft/
[root@rac1 soft]# ll
-rw-r--r-- 1 root root 195388 nov 4 23:54 compat-libstdc -33-3.2.3-72.el7.x86_64.rpm
-rw-r--r--. 1 root root 8288 aug 26 2013 cvuqdisk-1.0.9-1.rpm
-rw-r--r--. 1 root root 1395582860 jan 21 17:27 p13390677_112040_linux-x86-64_1of7.zip
-rw-r--r--. 1 root root 1151304589 jan 21 17:28 p13390677_112040_linux-x86-64_2of7.zip
-rw-r--r--. 1 root root 1205251894 apr 24 19:43 p13390677_112040_linux-x86-64_3of7.zip
-rw-r--r-- 1 root root 123248706 jan 21 17:27 p18370031_112040_linux-x86-64.zip
-rw-r--r-- 1 root root 19848 jan 21 17:27 p19404309_112040_linux-x86-64.zip
-rw-r--r--. 1 root root 1386494818 apr 24 19:50 p33575261_112040_linux-x86-64 .zip
-rw-r--r--. 1 root root 124863526 apr 24 19:36 p6880880_112000_linux-x86-64 .zip
-rw-r--r-- 1 root root 210877 nov 5 01:13 pdksh-5.2.14-37.el5_8.1.x86_64.rpm
-rw-r--r--. 1 root root 32343 aug 26 2013 sshusersetup.sh
[root@rac1 soft]# chmod x sshusersetup.sh
[root@rac1 soft]# ./sshusersetup.sh -user grid -hosts "rac1 rac2" -advanced -exverify -confirm
[root@rac1 soft]# ./sshusersetup.sh -user oracle -hosts "rac1 rac2" -advanced -exverify -confirm
二、配置asm存储
1，创建共享磁盘
先在节点1添加磁盘，2g3、5g2、8g*1
scsi1:0.filename = ocr1.vmdk"
scsi1:1.filename = ocr2.vmdk"
scsi1:2.filename =ocr3.vmdk"
scsi1:3.filename =data1vmdk.vmdk"
scsi1:4.filename = data2.vmdk"
scsi1:5.filename = fra.vmdk"
再在节点2添加磁盘,虚拟设备节点跟节点1一样
2，修改vmware配置
2台虚拟机关机，然后打开虚拟机安装目录，编辑“.vmx”结尾文件
scsi1.sharedbus = "virtual"
disk.locking = "false"
disklib.datacachemaxsize = "0"
disklib.datacachemaxreadaheadsize = "0"
disklib.datacacheminreadaheadsize = "0"
disklib.datacachepagesize = "4096"
disklib.maxunsyncedwrites = "0"
disk.enableuuid = "true"
保存后启动虚拟机。
第二台虚拟机与第一台虚拟机操作一致。
注意：有时disk.enableuuid = "true"参数，配置文件中已存在，留一个即可，否则开机报错
3，获取每块磁盘的uuid
[root@rac1 ~]# fdisk -l |grep sd
disk /dev/sda: 42.9 gb, 42949672960 bytes, 83886080 sectors
/dev/sda1 * 2048 1026047 512000 83 linux
/dev/sda2 1026048 83886079 41430016 8e linux lvm
disk /dev/sdc: 2147 mb, 2147483648 bytes, 4194304 sectors
disk /dev/sdb: 2147 mb, 2147483648 bytes, 4194304 sectors
disk /dev/sdd: 2147 mb, 2147483648 bytes, 4194304 sectors
disk /dev/sde: 5368 mb, 5368709120 bytes, 10485760 sectors
disk /dev/sdg: 8589 mb, 8589934592 bytes, 16777216 sectors
disk /dev/sdf: 5368 mb, 5368709120 bytes, 10485760 sectors
[root@rac1 ~]# for i in b c d;
> do
> echo "sd$i" "`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i` ";
> done
sdb 36000c295cd7b722a824777ad14edfea4
sdc 36000c2933a3d3e368f0617d67101c4fd
sdd 36000c29af4b6848f6be744dfe61cd58b
[root@rac1 ~]# for i in e f;
> do
> echo "sd$i" "`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i` ";
> done
sde 36000c293b06266f783f78ffa51ff8017
sdf 36000c29edd85099d2fd375823d87b343
[root@rac1 ~]# for i in g;
> do
> echo "sd$i" "`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i` ";
> done
sdg 36000c292b0b4af6f63aea0655a6c89b7
4，编辑asm规则文件
[root@rac1 ~]# vi /etc/udev/rules.d/99-oracle-asmdevices.rules
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c295cd7b722a824777ad14edfea4", symlink ="asm-ocr1", owner="grid", group="asmadmin", mode="0660"
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c2933a3d3e368f0617d67101c4fd", symlink ="asm-ocr2", owner="grid", group="asmadmin", mode="0660"
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c29af4b6848f6be744dfe61cd58b", symlink ="asm-ocr3", owner="grid", group="asmadmin", mode="0660"
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c293b06266f783f78ffa51ff8017", symlink ="asm-data1", owner="grid", group="asmadmin", mode="0660"
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c29edd85099d2fd375823d87b343", symlink ="asm-data2", owner="grid", group="asmadmin", mode="0660"
kernel=="sd*", subsystem=="block", program=="/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/$name", result=="36000c292b0b4af6f63aea0655a6c89b7", symlink ="asm-fra", owner="grid", group="asmadmin", mode="0660"
让udev重新加载规则生效
[root@rac1 ~]# /sbin/udevadm control --reload-rules
[root@rac1 ~]# /sbin/udevadm trigger --type=devices --action=change
[root@rac1 ~]# ll /dev/asm*
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-data1 -> sde
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-data2 -> sdf
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-fra -> sdg
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-ocr1 -> sdb
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-ocr2 -> sdc
lrwxrwxrwx 1 root root 3 apr 25 21:28 /dev/asm-ocr3 -> sdd
[root@rac1 ~]# ll /dev/sd*
brw-rw---- 1 root disk 8, 0 apr 25 21:28 /dev/sda
brw-rw---- 1 root disk 8, 1 apr 25 21:28 /dev/sda1
brw-rw---- 1 root disk 8, 2 apr 25 21:28 /dev/sda2
brw-rw---- 1 grid asmadmin 8, 16 apr 25 21:28 /dev/sdb
brw-rw---- 1 grid asmadmin 8, 32 apr 25 21:28 /dev/sdc
brw-rw---- 1 grid asmadmin 8, 48 apr 25 21:28 /dev/sdd
brw-rw---- 1 grid asmadmin 8, 64 apr 25 21:28 /dev/sde
brw-rw---- 1 grid asmadmin 8, 80 apr 25 21:28 /dev/sdf
brw-rw---- 1 grid asmadmin 8, 96 apr 25 21:28 /dev/sdg

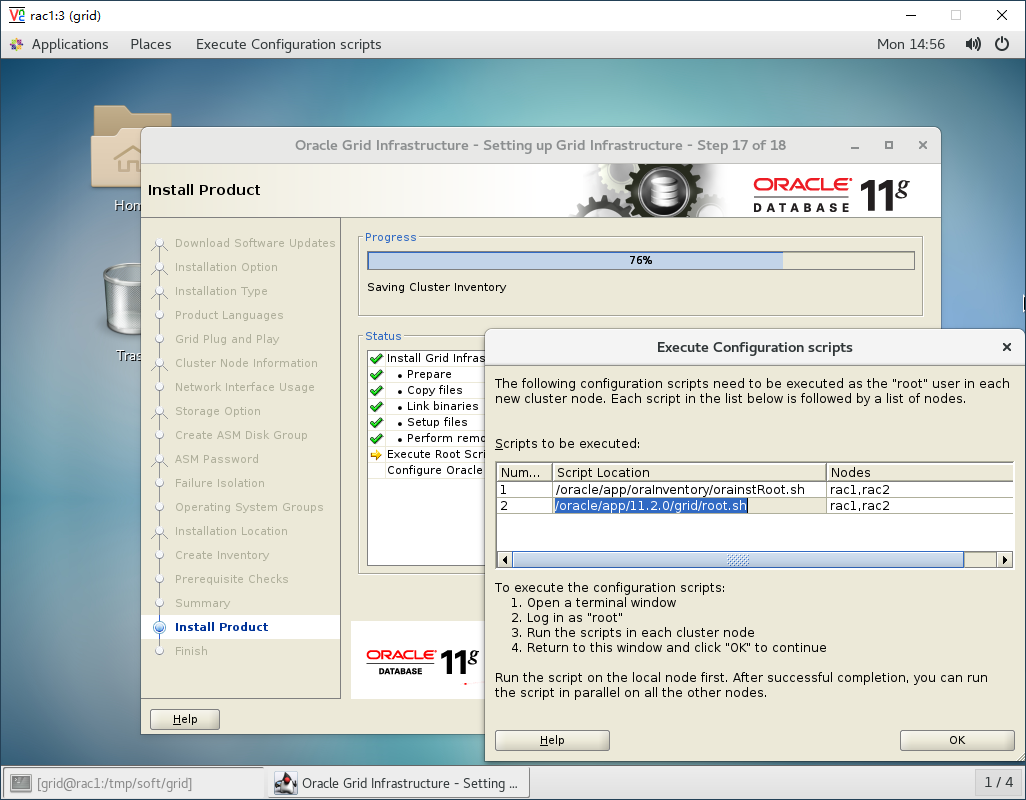

三、安装grid软件
1，配置图形化
[root@rac1 soft]# cd /tmp/soft/
[root@rac1 soft]# unzip p13390677_112040_linux-x86-64_3of7.zip
[root@rac1 soft]# cp /lib/systemd/system/vncserver@.service /etc/systemd/system/vncserver@:1.service
[root@rac1 soft]# vi /etc/systemd/system/vncserver\@\:1.service
execstart=/usr/sbin/runuser -l -c "/usr/bin/vncserver %i"
pidfile=/root/.vnc/%h%i.pid
[root@rac1 soft]# systemctl daemon-reload
[root@rac1 soft]# su - grid
[grid@rac1:/home/grid]$vncserver
[grid@rac1:/home/grid]$cd /tmp/soft
[grid@rac1:/tmp/soft]$unzip p19404309_112040_linux-x86-64.zip
[grid@rac1:/tmp/soft]$cp b19404309/grid/cvu_prereq.xml /tmp/soft/grid/
[grid@rac1:/tmp/soft]$cd /tmp/soft/grid/
[grid@rac1:/tmp/soft/grid]$./runinstaller -jreloc /etc/alternatives/jre_1.8.0
2，安装grid
遇到如上图报错，根据提示执行如下脚本
[grid@rac2:/home/grid]$/oracle/app/11.2.0/grid/oui/bin/runinstaller -jreloc /etc/alternatives/jre_1.8.0 -attachhome -noclusterenabled oracle_home=/oracle/app/11.2.0/grid oracle_home_name=ora11g_gridinfrahome1 cluster_nodes=rac1,rac2 “inventory_location=/oracle/app/orainventory” local_node=rac2
starting oracle universal installer…
checking swap space: must be greater than 500 mb. actual 4095 mb passed
the java runtime environment was not found at /etc/alternatives/jre_1.8.0/bin/java. hence, the oracle universal installer cannot be run.
please visit http://www.javasoft.com and install jre version 1.3.1 or higher and try again.
: no such file or directory
根据上面报错提示没有jre环境，需要安装图形化软件即可
[root@rac2 ~]# yum groupinstall –y “gnome desktop” “x window system” “desktop”
再次执行脚本成功
[root@rac2 ~]# su - grid
last login: mon apr 25 17:19:29 cst 2022 on pts/0
[grid@rac2:/home/grid]$/oracle/app/11.2.0/grid/oui/bin/runinstaller -jreloc /etc/alternatives/jre_1.8.0 -attachhome -noclusterenabled oracle_home=/oracle/app/11.2.0/grid oracle_home_name=ora11g_gridinfrahome1 cluster_nodes=rac1,rac2 “inventory_location=/oracle/app/orainventory” local_node=rac2
starting oracle universal installer…
checking swap space: must be greater than 500 mb. actual 4095 mb passed
the inventory pointer is located at /etc/orainst.loc
the inventory is located at /oracle/app/orainventory
please execute the ‘/oracle/app/orainventory/orainstroot.sh’ script at the end of the session.
‘attachhome’ was successful
```sh
依次在2个节点按照顺序执行第一个脚本
[root@rac1 soft]# /oracle/app/orainventory/orainstroot.sh
[root@rac2 ~]# /oracle/app/orainventory/orainstroot.sh
依次在2个节点按照顺序执行第二个脚本
[root@rac1 soft]# /oracle/app/11.2.0/grid/root.sh
[root@rac2 ~]# /oracle/app/11.2.0/grid/root.sh
每个节点在执行root.sh的时候遇到如上报错，解决方法是新开一个终端窗口，然后执行如下命令
[root@rac1 ~]# touch /usr/lib/systemd/system/ohas.service
[root@rac1 ~]# chmod 777 /usr/lib/systemd/system/ohas.service
[root@rac1 ~]# vi /usr/lib/systemd/system/ohas.service
[unit]
description=oracle high availability services
after=syslog.target
[service]
execstart=/etc/init.d/init.ohasd run >/dev/null 2>&1 type=simple
restart=always
[install]
wantedby=multi-user.target
[root@rac1 ~]# systemctl daemon-reload
[root@rac1 ~]# systemctl start ohas.service
[root@rac1 ~]# systemctl enable ohas.service
###网上也有说使用如下命令的,没有亲测过不知道是否可用###
[root@rac1 ~]# cd /var/tmp/.oracle/
[root@rac1 .oracle]# dd if=npohasd of=/dev/null bs=1024 count=1
###还有种推荐的方法，需要在执行root.sh之前打一个补丁p18370031_112040_linux-x86-64.zip###
[grid@rac1:/home/grid]$cd /tmp/soft
[grid@rac2:/tmp/soft]$unzip p18370031_112040_linux-x86-64.zip
[grid@rac2:/tmp/soft]$cd 18370031/
[grid@rac1:/tmp/soft]$$oracle_home/opatch/opatch apply
节点2执行root.sh的时候，除了像节点1那样出现上面图片的报错，可能还出现如下报错：
mounting disk group ocr failed with the following message:
ora-15032: not all alterations performed
ora-15017: diskgroup "ocr" cannot be mounted
ora-15003: diskgroup "ocr" already mounted in another lock name space
configuration of asm ... failed
see asmca logs at /oracle/app/grid/cfgtoollogs/asmca for details
did not succssfully configure and start asm at /oracle/app/11.2.0/grid/crs/install/crsconfig_lib.pm line 6912.
/oracle/app/11.2.0/grid/perl/bin/perl -i/oracle/app/11.2.0/grid/perl/lib -i/oracle/app/11.2.0/grid/crs/install /oracle/app/11.2.0/grid/crs/install/rootcrs.pl execution failed
在2个节点清除crs配置信息后，重新运行root.sh
[root@rac1 soft]# cd /oracle/app/11.2.0/grid/crs/install/
[root@rac1 install]# ./rootcrs.pl -verbose -deconfig -force
出现如下报错信息：
can't locate env.pm in @inc (@inc contains: /usr/local/lib64/perl5 /usr/local/share/perl5 /usr/lib64/perl5/vendor_perl /usr/share/perl5/vendor_perl /usr/lib64/perl5 /usr/share/perl5 . .) at crsconfig_lib.pm line 703.
begin failed--compilation aborted at crsconfig_lib.pm line 703.
compilation failed in require at ./rootcrs.pl line 305.
begin failed--compilation aborted at ./rootcrs.pl line 305.
解决方法如下，安装perl-env即可：
[root@rac1 install]# yum install perl-env
[root@rac1 install]# ./rootcrs.pl -verbose -deconfig -force
再在第二个节点清除crs配置
[root@rac2 install]# yum install perl-env
[root@rac2 install]# cd /oracle/app/11.2.0/grid/crs/install/
[root@rac2 install]# ./rootcrs.pl -verbose -deconfig -force -lastnode
然后继续安装
四、创建asm磁盘组
[grid@rac1 ~]$ asmca
五、安装database软件
[root@rac1 ~]# su - oracle
last login: sun apr 24 20:00:03 cst 2022 on pts/0
[oracle@rac1:/home/oracle]$vncserver 密码仍然设置为oracle
[oracle@rac1 ~]$ cd /tmp/soft/database/
[oracle@rac1 database]$ ./runinstaller -jreloc /etc/alternatives/jre_1.8.0
[oracle@rac1:/home/oracle]$cd /oracle/app/oracle/product/11.2.0/db_1/sysman/lib
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/sysman/lib]$cp ins_emagent.mk ins_emagent.mk.bak
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/sysman/lib]$vi ins_emagent.mk
$(sysmanbin)emdctl:
$(mk_emagent_nmectl) -lnnz11
回到安装界面点击retry
[root@rac1 ~]# /oracle/app/oracle/product/11.2.0/db_1/root.sh
performing root user operation for oracle 11g
the following environment variables are set as:
oracle_owner= oracle
oracle_home= /oracle/app/oracle/product/11.2.0/db_1
enter the full pathname of the local bin directory: [/usr/local/bin]:
the contents of "dbhome" have not changed. no need to overwrite.
the contents of "oraenv" have not changed. no need to overwrite.
the contents of "coraenv" have not changed. no need to overwrite.
entries will be added to the /etc/oratab file as needed by
database configuration assistant when a database is created
finished running generic part of root script.
now product-specific root actions will be performed.
finished product-specific root actions.
六、dbca创建数据库
[oracle@rac1 ~]$ dbca
[root@rac1 ~]# crsctl status res -t
--------------------------------------------------------------------------------
name target state server state_details
--------------------------------------------------------------------------------
local resources
--------------------------------------------------------------------------------
ora.data.dg
online online rac1
online online rac2
ora.fra.dg
online online rac1
online online rac2
ora.listener.lsnr
online online rac1
online online rac2
ora.ocr.dg
online online rac1
online online rac2
ora.asm
online online rac1 started
online online rac2 started
ora.gsd
offline offline rac1
offline offline rac2
ora.net1.network
online online rac1
online online rac2
ora.ons
online online rac1
online online rac2
--------------------------------------------------------------------------------
cluster resources
--------------------------------------------------------------------------------
ora.listener_scan1.lsnr
1 online online rac1
ora.cvu
1 online online rac1
ora.oc4j
1 online online rac1
ora.orcl.db
1 online online rac1 open
2 online online rac2 open
ora.rac1.vip
1 online online rac1
ora.rac2.vip
1 online online rac2
ora.scan1.vip
1 online online rac1
七、安装psu
1，备份oracle_home
停止数据库后，在2个节点备份grid用户和oracle用户的oracle_home
[root@rac1 tmp]# tar cvf /tmp/grid_home.tar /oracle/app/11.2.0/grid
[root@rac1 tmp]# tar cvf /tmp/oracle_home.tar /oracle/app/oracle/product/11.2.0/db_1
2，升级opatch
```新版本的opatch位于/tmp/soft/```
升级grid用户的opatch
[root@rac1 ~]# mv /oracle/app/11.2.0/grid/opatch/ /oracle/app/11.2.0/grid/opatch.bak
[root@rac1 ~]# unzip /tmp/soft/p6880880_112000_linux-x86-64\ .zip -d /oracle/app/11.2.0/grid/
[root@rac1 ~]# chown -r grid:oinstall /oracle/app/11.2.0/grid/opatch
[root@rac1 ~]# su - grid
[grid@rac1:/home/grid]$cd $oracle_home
[grid@rac1:/oracle/app/11.2.0/grid]$opatch/opatch version
opatch version: 11.2.0.3.33
升级oracle用户的opatch
[root@rac1 ~]# mv /oracle/app/oracle/product/11.2.0/db_1/opatch/ /oracle/app/oracle/product/11.2.0/db_1/opatch.bak
[root@rac1 ~]# unzip /tmp/soft/p6880880_112000_linux-x86-64\ .zip -d /oracle/app/oracle/product/11.2.0/db_1/
[root@rac1 ~]# chown -r oracle:oinstall /oracle/app/oracle/product/11.2.0/db_1/opatch
[root@rac1 ~]# su - oracle
[oracle@rac1:/home/oracle]$cd $oracle_home
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1]$opatch/opatch version
opatch version: 11.2.0.3.33
3，验证inventory
分别用grid和oracle用户检查inventory有效性
[root@rac1 bin]# su - grid
[grid@rac1:/home/grid]$$oracle_home/opatch/opatch lsinventory -detail -oh $oracle_home
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
oracle home : /oracle/app/11.2.0/grid
central inventory : /oracle/app/orainventory
from : /oracle/app/11.2.0/grid/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/opatch2022-04-26_14-41-40pm_1.log
lsinventory output file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/lsinv/lsinventory2022-04-26_14-41-40pm.txt
--------------------------------------------------------------------------------
local machine information::
hostname: rac1
aru platform id: 226
aru platform description:: linux x86-64
installed top-level products (1):
oracle grid infrastructure 11g 11.2.0.4.0
there are 1 products installed in this oracle home.
installed products (89):
agent required support files 10.2.0.4.5
assistant common files 11.2.0.4.0
automatic storage management assistant 11.2.0.4.0
bali share 1.1.18.0.0
buildtools common files 11.2.0.4.0
character set migration utility 11.2.0.4.0
cluster ready services files 11.2.0.4.0
cluster verification utility common files 11.2.0.4.0
cluster verification utility files 11.2.0.4.0
database sql scripts 11.2.0.4.0
deinstallation tool 11.2.0.4.0
enterprise manager common core files 10.2.0.4.5
enterprise manager common files 10.2.0.4.5
enterprise manager plugin common files 11.2.0.4.0
expat libraries 2.0.1.0.1
has common files 11.2.0.4.0
has files for db 11.2.0.4.0
installation common files 11.2.0.4.0
installation plugin files 11.2.0.4.0
installer sdk component 11.2.0.4.0
java development kit 1.5.0.51.10
ldap required support files 11.2.0.4.0
olap sql scripts 11.2.0.4.0
oracle advanced security 11.2.0.4.0
oracle clusterware rdbms files 11.2.0.4.0
oracle configuration manager deconfiguration 10.3.1.0.0
oracle containers for java 11.2.0.4.0
oracle core required support files 11.2.0.4.0
oracle database 11g 11.2.0.4.0
oracle database 11g multimedia files 11.2.0.4.0
oracle database deconfiguration 11.2.0.4.0
oracle database user interface 2.2.13.0.0
oracle database utilities 11.2.0.4.0
oracle dbca deconfiguration 11.2.0.4.0
oracle extended windowing toolkit 3.4.47.0.0
oracle globalization support 11.2.0.4.0
oracle globalization support 11.2.0.4.0
oracle grid infrastructure 11g 11.2.0.4.0
oracle help for java 4.2.9.0.0
oracle ice browser 5.2.3.6.0
oracle internet directory client 11.2.0.4.0
oracle java client 11.2.0.4.0
oracle jdbc/oci instant client 11.2.0.4.0
oracle jdbc/thin interfaces 11.2.0.4.0
oracle jfc extended windowing toolkit 4.2.36.0.0
oracle jvm 11.2.0.4.0
oracle ldap administration 11.2.0.4.0
oracle locale builder 11.2.0.4.0
oracle multimedia 11.2.0.4.0
oracle multimedia client option 11.2.0.4.0
oracle multimedia java advanced imaging 11.2.0.4.0
oracle multimedia locator 11.2.0.4.0
oracle multimedia locator rdbms files 11.2.0.4.0
oracle net 11.2.0.4.0
oracle net listener 11.2.0.4.0
oracle net required support files 11.2.0.4.0
oracle netca client 11.2.0.4.0
oracle notification service 11.2.0.3.0
oracle notification service (eons) 11.2.0.4.0
oracle one-off patch installer 11.2.0.3.4
oracle quality of service management (client) 11.2.0.4.0
oracle quality of service management (server) 11.2.0.4.0
oracle rac deconfiguration 11.2.0.4.0
oracle rac required support files-has 11.2.0.4.0
oracle recovery manager 11.2.0.4.0
oracle security developer tools 11.2.0.4.0
oracle text required support files 11.2.0.4.0
oracle universal installer 11.2.0.4.0
oracle usm deconfiguration 11.2.0.4.0
oracle wallet manager 11.2.0.4.0
parser generator required support files 11.2.0.4.0
perl interpreter 5.10.0.0.2
perl modules 5.10.0.0.1
pl/sql 11.2.0.4.0
pl/sql embedded gateway 11.2.0.4.0
platform required support files 11.2.0.4.0
precompiler required support files 11.2.0.4.0
rdbms required support files 11.2.0.4.0
rdbms required support files for instant client 11.2.0.4.0
rdbms required support files runtime 11.2.0.4.0
required support files 11.2.0.4.0
secure socket layer 11.2.0.4.0
sql*plus 11.2.0.4.0
sql*plus files for instant client 11.2.0.4.0
sql*plus required support files 11.2.0.4.0
ssl required support files for instantclient 11.2.0.4.0
universal storage manager files 11.2.0.4.0
xdk required support files 11.2.0.4.0
xml parser for java 11.2.0.4.0
there are 89 products installed in this oracle home.
there are no interim patches installed in this oracle home.
--------------------------------------------------------------------------------
opatch succeeded.
[grid@rac1:/home/grid]$$oracle_home/opatch/opatch lspatches
there are no interim patches installed in this oracle home "/oracle/app/11.2.0/grid".
opatch succeeded.
[root@rac1 bin]# su - oracle
[oracle@rac1:/home/oracle]$$oracle_home/opatch/opatch lsinventory -detail -oh $oracle_home
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
oracle home : /oracle/app/oracle/product/11.2.0/db_1
central inventory : /oracle/app/orainventory
from : /oracle/app/oracle/product/11.2.0/db_1/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch2022-04-26_14-46-17pm_1.log
lsinventory output file location : /oracle/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/lsinv/lsinventory2022-04-26_14-46-17pm.txt
--------------------------------------------------------------------------------
local machine information::
hostname: rac1
aru platform id: 226
aru platform description:: linux x86-64
installed top-level products (1):
oracle database 11g 11.2.0.4.0
there are 1 products installed in this oracle home.
installed products (136):
agent required support files 10.2.0.4.5
assistant common files 11.2.0.4.0
bali share 1.1.18.0.0
buildtools common files 11.2.0.4.0
character set migration utility 11.2.0.4.0
cluster verification utility common files 11.2.0.4.0
database configuration and upgrade assistants 11.2.0.4.0
database sql scripts 11.2.0.4.0
database workspace manager 11.2.0.4.0
deinstallation tool 11.2.0.4.0
enterprise edition options 11.2.0.4.0
enterprise manager agent 10.2.0.4.5
enterprise manager agent core files 10.2.0.4.5
enterprise manager common core files 10.2.0.4.5
enterprise manager common files 10.2.0.4.5
enterprise manager database plugin -- agent support 11.2.0.4.0
enterprise manager database plugin -- repository support 11.2.0.4.0
enterprise manager grid control core files 10.2.0.4.5
enterprise manager plugin common files 11.2.0.4.0
enterprise manager repository core files 10.2.0.4.5
exadata storage server 11.2.0.1.0
expat libraries 2.0.1.0.1
generic connectivity common files 11.2.0.4.0
has common files 11.2.0.4.0
has files for db 11.2.0.4.0
installation common files 11.2.0.4.0
installation plugin files 11.2.0.4.0
installer sdk component 11.2.0.4.0
jaccelerator (companion) 11.2.0.4.0
java development kit 1.5.0.51.10
ldap required support files 11.2.0.4.0
olap sql scripts 11.2.0.4.0
oracle 11g warehouse builder required files 11.2.0.4.0
oracle advanced security 11.2.0.4.0
oracle application express 11.2.0.4.0
oracle call interface (oci) 11.2.0.4.0
oracle clusterware rdbms files 11.2.0.4.0
oracle code editor 1.2.1.0.0i
oracle configuration manager 10.3.8.1.0
oracle configuration manager client 10.3.2.1.0
oracle configuration manager deconfiguration 10.3.1.0.0
oracle containers for java 11.2.0.4.0
oracle core required support files 11.2.0.4.0
oracle data mining rdbms files 11.2.0.4.0
oracle database 11g 11.2.0.4.0
oracle database 11g 11.2.0.4.0
oracle database 11g multimedia files 11.2.0.4.0
oracle database deconfiguration 11.2.0.4.0
oracle database gateway for odbc 11.2.0.4.0
oracle database user interface 2.2.13.0.0
oracle database utilities 11.2.0.4.0
oracle database vault j2ee application 11.2.0.4.0
oracle database vault option 11.2.0.4.0
oracle dbca deconfiguration 11.2.0.4.0
oracle display fonts 9.0.2.0.0
oracle enterprise manager console db 11.2.0.4.0
oracle extended windowing toolkit 3.4.47.0.0
oracle globalization support 11.2.0.4.0
oracle globalization support 11.2.0.4.0
oracle help for java 4.2.9.0.0
oracle help for the web 2.0.14.0.0
oracle ice browser 5.2.3.6.0
oracle internet directory client 11.2.0.4.0
oracle java client 11.2.0.4.0
oracle jdbc server support package 11.2.0.4.0
oracle jdbc/oci instant client 11.2.0.4.0
oracle jdbc/thin interfaces 11.2.0.4.0
oracle jfc extended windowing toolkit 4.2.36.0.0
oracle jvm 11.2.0.4.0
oracle label security 11.2.0.4.0
oracle ldap administration 11.2.0.4.0
oracle locale builder 11.2.0.4.0
oracle message gateway common files 11.2.0.4.0
oracle multimedia 11.2.0.4.0
oracle multimedia annotator 11.2.0.4.0
oracle multimedia client option 11.2.0.4.0
oracle multimedia java advanced imaging 11.2.0.4.0
oracle multimedia locator 11.2.0.4.0
oracle multimedia locator rdbms files 11.2.0.4.0
oracle net 11.2.0.4.0
oracle net listener 11.2.0.4.0
oracle net required support files 11.2.0.4.0
oracle net services 11.2.0.4.0
oracle netca client 11.2.0.4.0
oracle notification service 11.2.0.3.0
oracle notification service (eons) 11.2.0.4.0
oracle odbc driver 11.2.0.4.0
oracle odbc driverfor instant client 11.2.0.4.0
oracle olap 11.2.0.4.0
oracle olap api 11.2.0.4.0
oracle olap rdbms files 11.2.0.4.0
oracle one-off patch installer 11.2.0.3.4
oracle partitioning 11.2.0.4.0
oracle programmer 11.2.0.4.0
oracle quality of service management (client) 11.2.0.4.0
oracle rac deconfiguration 11.2.0.4.0
oracle rac required support files-has 11.2.0.4.0
oracle real application testing 11.2.0.4.0
oracle recovery manager 11.2.0.4.0
oracle security developer tools 11.2.0.4.0
oracle spatial 11.2.0.4.0
oracle sql developer 11.2.0.4.0
oracle starter database 11.2.0.4.0
oracle text 11.2.0.4.0
oracle text required support files 11.2.0.4.0
oracle uix 2.2.24.6.0
oracle universal connection pool 11.2.0.4.0
oracle universal installer 11.2.0.4.0
oracle usm deconfiguration 11.2.0.4.0
oracle wallet manager 11.2.0.4.0
oracle xml development kit 11.2.0.4.0
oracle xml query 11.2.0.4.0
parser generator required support files 11.2.0.4.0
perl interpreter 5.10.0.0.2
perl modules 5.10.0.0.1
pl/sql 11.2.0.4.0
pl/sql embedded gateway 11.2.0.4.0
platform required support files 11.2.0.4.0
precompiler common files 11.2.0.4.0
precompiler required support files 11.2.0.4.0
provisioning advisor framework 10.2.0.4.3
rdbms required support files 11.2.0.4.0
rdbms required support files for instant client 11.2.0.4.0
rdbms required support files runtime 11.2.0.4.0
regexp 2.1.9.0.0
required support files 11.2.0.4.0
sample schema data 11.2.0.4.0
secure socket layer 11.2.0.4.0
sql*plus 11.2.0.4.0
sql*plus files for instant client 11.2.0.4.0
sql*plus required support files 11.2.0.4.0
sqlj runtime 11.2.0.4.0
ssl required support files for instantclient 11.2.0.4.0
xdk required support files 11.2.0.4.0
xml parser for java 11.2.0.4.0
xml parser for oracle jvm 11.2.0.4.0
there are 136 products installed in this oracle home.
there are no interim patches installed in this oracle home.
--------------------------------------------------------------------------------
opatch succeeded.
[oracle@rac1:/home/oracle]$$oracle_home/opatch/opatch lspatches
there are no interim patches installed in this oracle home "/oracle/app/oracle/product/11.2.0/db_1".
opatch succeeded.
4，检查补丁是否有冲突
```psu原先上传在/tmp/soft/p33575261_112040_linux-x86-64 .zip，现在移动到/psu目录```
[root@rac1 ~]# mkdir /psu
[root@rac1 ~]# unzip /tmp/soft/p33575261_112040_linux-x86-64\ .zip -d /psu
[root@rac1 ~]# chown -r grid:oinstall /psu/
[root@rac1 ~]# chmod -r 777 /psu/
[root@rac1 ~]# crsctl stop crs
[root@rac1 ~]# su - grid
[grid@rac1:/home/grid]$srvctl stop listener
[grid@rac1:/home/grid]$lsnrctl stop listener_scan1
[grid@rac1:/home/grid]$cd /psu/33575261/
[grid@rac1:/psu/33575261]$$oracle_home/opatch/opatch prereq checkconflictagainstohwithdetail -ph ./
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
prereq session
oracle home : /oracle/app/11.2.0/grid
central inventory : /oracle/app/orainventory
from : /oracle/app/11.2.0/grid/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/opatch2022-04-26_15-02-15pm_1.log
invoking prereq "checkconflictagainstohwithdetail"
prereq "checkconflictagainstohwithdetail" passed.
opatch succeeded.
[grid@rac1:/psu/33575261/33477185]$$oracle_home/opatch/opatch prereq checkactivefilesandexecutables -ph ./
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
prereq session
oracle home : /oracle/app/11.2.0/grid
central inventory : /oracle/app/orainventory
from : /oracle/app/11.2.0/grid/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/opatch2022-04-26_21-33-10pm_1.log
invoking prereq "checkactivefilesandexecutables"
prereq "checkactivefilesandexecutables" for patch 17478514 passed.
prereq "checkactivefilesandexecutables" for patch 18031668 passed.
prereq "checkactivefilesandexecutables" for patch 18522509 passed.
prereq "checkactivefilesandexecutables" for patch 19121551 passed.
prereq "checkactivefilesandexecutables" for patch 19769489 passed.
prereq "checkactivefilesandexecutables" for patch 20299013 passed.
prereq "checkactivefilesandexecutables" for patch 20760982 passed.
prereq "checkactivefilesandexecutables" for patch 21352635 passed.
prereq "checkactivefilesandexecutables" for patch 21948347 passed.
prereq "checkactivefilesandexecutables" for patch 22502456 passed.
prereq "checkactivefilesandexecutables" for patch 23054359 passed.
prereq "checkactivefilesandexecutables" for patch 24006111 passed.
prereq "checkactivefilesandexecutables" for patch 24732075 passed.
prereq "checkactivefilesandexecutables" for patch 25869727 passed.
prereq "checkactivefilesandexecutables" for patch 26609445 passed.
prereq "checkactivefilesandexecutables" for patch 26392168 passed.
prereq "checkactivefilesandexecutables" for patch 26925576 passed.
prereq "checkactivefilesandexecutables" for patch 27338049 passed.
prereq "checkactivefilesandexecutables" for patch 27734982 passed.
prereq "checkactivefilesandexecutables" for patch 28204707 passed.
prereq "checkactivefilesandexecutables" for patch 28729262 passed.
prereq "checkactivefilesandexecutables" for patch 29141056 passed.
prereq "checkactivefilesandexecutables" for patch 29497421 passed.
prereq "checkactivefilesandexecutables" for patch 29913194 passed.
prereq "checkactivefilesandexecutables" for patch 30298532 passed.
prereq "checkactivefilesandexecutables" for patch 30670774 passed.
prereq "checkactivefilesandexecutables" for patch 31103343 passed.
prereq "checkactivefilesandexecutables" for patch 31537677 passed.
prereq "checkactivefilesandexecutables" for patch 31983472 passed.
prereq "checkactivefilesandexecutables" for patch 32328626 passed.
prereq "checkactivefilesandexecutables" for patch 32758711 passed.
prereq "checkactivefilesandexecutables" for patch 33128584 passed.
prereq "checkactivefilesandexecutables" for patch 33477185 passed.
opatch succeeded.
5，预演补丁升级
```不用停crs```
[root@rac1 ~]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/11.2.0/grid,/oracle/app/oracle/product/11.2.0/db_1 -report
executing /oracle/app/11.2.0/grid/perl/bin/perl /oracle/app/11.2.0/grid/opatch/crs/patch11203.pl -patchdir /psu -patchn 33575261 -oh /oracle/app/11.2.0/grid,/oracle/app/oracle/product/11.2.0/db_1 -report -paramfile /oracle/app/11.2.0/grid/crs/install/crsconfig_params
this is the main log file: /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_15-17-21.log
this file will show your detected configuration and all the steps that opatchauto attempted to do on your system:
/oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_15-17-21.report.log
2022-04-26 15:17:21: starting clusterware patch setup
using configuration parameter file: /oracle/app/11.2.0/grid/crs/install/crsconfig_params
opatchauto is running in analyze/report mode. it will make no change to your system
patch /psu/33575261/32758914 apply (report mode) successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33477185 apply (report mode) successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33112794 apply (report mode) successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/32758914/custom/server/32758914 apply (report mode) successful for home /oracle/app/oracle/product/11.2.0/db_1
patch /psu/33575261/33477185 apply (report mode) successful for home /oracle/app/oracle/product/11.2.0/db_1
opatch auto succeeded.
6，升级补丁
the opatch utility has automated the patch application for the oracle grid infrastructure (gi) home and the oracle rac database homes when run with root privileges. it must be executed on each node in the cluster if the gi home or oracle rac database home is in non-shared storage. the utility should not be run in parallel on the cluster nodes.
根据readme的指导，root用户执行opatch auto会自动升级gi和database
[root@rac1 33575261]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/11.2.0/grid,/oracle/app/oracle/product/11.2.0/db_1
但是在实际操作中遇到报错：
/oracle/app/11.2.0/grid/bin/crsctl query crs activeversion ... failed rc=8 with message:
oracle cluster registry initialization failed accessing oracle cluster registry device: proc-26: error while accessing the physical storage ora-29701: unable to connect to cluster synchronization service
stopping rac /oracle/app/oracle/product/11.2.0/db_1 ...
failed to stop resources from database home /oracle/app/oracle/product/11.2.0/db_1
error: refer log file for more details.
opatch auto failed.
根据查看安装日志，里面有下面的提示：
2022-04-26 17:57:05: executing cmd: /oracle/app/11.2.0/grid/bin/crsctl query crs activeversion
2022-04-26 17:57:16: command output:
百度了一下可能是触发了oracle的某个bug导致安装失败。
于是只好分开升级，先升级gi的psu，然后再升级db的psu
```节点1的gi升级过程如下```
[root@rac1 ~]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/11.2.0/grid
executing /oracle/app/11.2.0/grid/perl/bin/perl /oracle/app/11.2.0/grid/opatch/crs/patch11203.pl -patchdir /psu -patchn 33575261 -oh /oracle/app/11.2.0/grid -paramfile /oracle/app/11.2.0/grid/crs/install/crsconfig_params
this is the main log file: /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_21-47-47.log
this file will show your detected configuration and all the steps that opatchauto attempted to do on your system:
/oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_21-47-47.report.log
2022-04-26 21:47:47: starting clusterware patch setup
using configuration parameter file: /oracle/app/11.2.0/grid/crs/install/crsconfig_params
stopping crs...
stopped crs successfully
patch /psu/33575261/32758914 apply successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33477185 apply successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33112794 apply successful for home /oracle/app/11.2.0/grid
starting crs...
installing trace file analyzer
crs-4123: oracle high availability services has been started.
opatch auto succeeded.
升级报告内容如下
[root@rac1 ~]# more /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_21-47-47.report.log
*********** configuration data ***********
* it shows only those targets that will be patched in this session *
crs_home=/oracle/app/11.2.0/grid owner=grid opatch_ver=11.2.0.3.33
*********** steps to be executed as owner unless specified as root ***********
1: /oracle/app/11.2.0/grid/opatch/opatch prereq checkcomponents -ph /psu/33575261/32758914 -oh /oracle/app/11.2.0/grid
2: /oracle/app/11.2.0/grid/opatch/opatch prereq checkcomponents -ph /psu/33575261/33477185 -oh /oracle/app/11.2.0/grid
3: /oracle/app/11.2.0/grid/opatch/opatch prereq checkcomponents -ph /psu/33575261/33112794 -oh /oracle/app/11.2.0/grid
4: /oracle/app/11.2.0/grid/opatch/opatch prereq checkconflictagainstoh -ph /psu/33575261/32758914 -oh /oracle/app/11.2.0/grid
5: /oracle/app/11.2.0/grid/opatch/opatch prereq checkconflictagainstoh -ph /psu/33575261/33477185 -oh /oracle/app/11.2.0/grid
6: /oracle/app/11.2.0/grid/opatch/opatch prereq checkconflictagainstoh -ph /psu/33575261/33112794 -oh /oracle/app/11.2.0/grid
7: /oracle/app/11.2.0/grid/crs/install/rootcrs.pl -unlock : run as root
8: /oracle/app/11.2.0/grid/tfa/bin/tfactl stop : run as root
9: /sbin/fuser -k /oracle/app/11.2.0/grid/bin/crsctl.bin : run as root
10: /oracle/app/11.2.0/grid/opatch/opatch prereq checkapplicable -ph /psu/33575261/32758914 -oh /oracle/app/11.2.0/grid
11: /oracle/app/11.2.0/grid/opatch/opatch prereq checkapplicable -ph /psu/33575261/33477185 -oh /oracle/app/11.2.0/grid
12: /oracle/app/11.2.0/grid/opatch/opatch prereq checkapplicable -ph /psu/33575261/33112794 -oh /oracle/app/11.2.0/grid
13: /oracle/app/11.2.0/grid/opatch/opatch napply /psu/33575261/32758914 -local -silent -oh /oracle/app/11.2.0/grid -invptrloc /oracle/a
pp/11.2.0/grid/orainst.loc
14: /oracle/app/11.2.0/grid/opatch/opatch napply /psu/33575261/33477185 -local -silent -oh /oracle/app/11.2.0/grid -invptrloc /oracle/a
pp/11.2.0/grid/orainst.loc
15: /oracle/app/11.2.0/grid/opatch/opatch napply /psu/33575261/33112794 -local -silent -oh /oracle/app/11.2.0/grid -invptrloc /oracle/a
pp/11.2.0/grid/orainst.loc
16: /oracle/app/11.2.0/grid/bin/emctl start dbconsole
17: /oracle/app/11.2.0/grid/rdbms/install/rootadd_rdbms.sh : run as root
18: /oracle/app/11.2.0/grid/crs/install/rootcrs.pl -patch : run as root
```节点1的db升级过程如下```
[root@rac1 ~]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/oracle/product/11.2.0/db_1
executing /oracle/app/11.2.0/grid/perl/bin/perl /oracle/app/11.2.0/grid/opatch/crs/patch11203.pl -patchdir /psu -patchn 33575261 -oh /oracle/app/oracle/product/11.2.0/db_1 -paramfile /oracle/app/11.2.0/grid/crs/install/crsconfig_params
this is the main log file: /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-00-41.log
this file will show your detected configuration and all the steps that opatchauto attempted to do on your system:
/oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-00-41.report.log
2022-04-26 22:00:41: starting clusterware patch setup
using configuration parameter file: /oracle/app/11.2.0/grid/crs/install/crsconfig_params
stopping rac /oracle/app/oracle/product/11.2.0/db_1 ...
stopped rac /oracle/app/oracle/product/11.2.0/db_1 successfully
patch /psu/33575261/32758914/custom/server/32758914 apply successful for home /oracle/app/oracle/product/11.2.0/db_1
patch /psu/33575261/33477185 apply successful for home /oracle/app/oracle/product/11.2.0/db_1
starting rac /oracle/app/oracle/product/11.2.0/db_1 ...
started rac /oracle/app/oracle/product/11.2.0/db_1 successfully
opatch auto succeeded.
升级报告内容如下
[root@rac1 ~]# more /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-00-41.report.log
*********** configuration data ***********
* it shows only those targets that will be patched in this session *
rac_home=/oracle/app/oracle/product/11.2.0/db_1 owner=oracle opatch_ver=11.2.0.3.33
*********** steps to be executed as owner unless specified as root ***********
1: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkcomponents -ph /psu/33575261/32758914/custom/server/32758914 -oh /o
racle/app/oracle/product/11.2.0/db_1
2: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkcomponents -ph /psu/33575261/33477185 -oh /oracle/app/oracle/produc
t/11.2.0/db_1
3: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkconflictagainstoh -ph /psu/33575261/32758914/custom/server/32758914
-oh /oracle/app/oracle/product/11.2.0/db_1
4: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkconflictagainstoh -ph /psu/33575261/33477185 -oh /oracle/app/oracle
/product/11.2.0/db_1
5: /oracle/app/oracle/product/11.2.0/db_1/bin/emctl stop dbconsole
6: /oracle/app/oracle/product/11.2.0/db_1/bin/emctl stop agent
7: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkapplicable -ph /psu/33575261/32758914/custom/server/32758914 -oh /o
racle/app/oracle/product/11.2.0/db_1
8: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch prereq checkapplicable -ph /psu/33575261/33477185 -oh /oracle/app/oracle/produc
t/11.2.0/db_1
9: /oracle/app/oracle/product/11.2.0/db_1/bin/srvctl stop home -o /oracle/app/oracle/product/11.2.0/db_1 -s /oracle/app/oracle/product/
11.2.0/db_1/srvm/admin/stophome.txt -n rac1 -f
10: /psu/33575261/32758914/custom/server/32758914/custom/scripts/prepatch.sh -dbhome /oracle/app/oracle/product/11.2.0/db_1
11: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch napply /psu/33575261/32758914/custom/server/32758914 -local -silent -oh /oracl
e/app/oracle/product/11.2.0/db_1 -invptrloc /oracle/app/oracle/product/11.2.0/db_1/orainst.loc
12: /oracle/app/oracle/product/11.2.0/db_1/opatch/opatch napply /psu/33575261/33477185 -local -silent -oh /oracle/app/oracle/product/11
.2.0/db_1 -invptrloc /oracle/app/oracle/product/11.2.0/db_1/orainst.loc
13: /psu/33575261/32758914/custom/server/32758914/custom/scripts/postpatch.sh -dbhome /oracle/app/oracle/product/11.2.0/db_1
14: /oracle/app/oracle/product/11.2.0/db_1/bin/emctl start dbconsole
15: /oracle/app/oracle/product/11.2.0/db_1/bin/emctl start agent
16: /oracle/app/oracle/product/11.2.0/db_1/bin/srvctl start home -o /oracle/app/oracle/product/11.2.0/db_1 -s /oracle/app/oracle/produc
t/11.2.0/db_1/srvm/admin/stophome.txt -n rac1
```验证gi补丁升级结果```
[root@rac1 ~]# su - grid
[grid@rac1:/home/grid]$$oracle_home/opatch/opatch lsinventory
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
oracle home : /oracle/app/11.2.0/grid
central inventory : /oracle/app/orainventory
from : /oracle/app/11.2.0/grid/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/opatch2022-04-26_22-15-36pm_1.log
lsinventory output file location : /oracle/app/11.2.0/grid/cfgtoollogs/opatch/lsinv/lsinventory2022-04-26_22-15-36pm.txt
--------------------------------------------------------------------------------
local machine information::
hostname: rac1
aru platform id: 226
aru platform description:: linux x86-64
installed top-level products (1):
oracle grid infrastructure 11g 11.2.0.4.0
there are 1 products installed in this oracle home.
interim patches (3) :
patch 33112794 : applied on tue apr 26 21:55:24 cst 2022
unique patch id: 24333589
patch description: "acfs patch set update 11.2.0.4.210720 (33112794)"
created on 14 jul 2021, 01:00:58 hrs pst8pdt
bugs fixed:
26247490, 28069955, 21369858, 16318126, 19690653, 17503605, 17203009
17359415, 20140148, 17611362, 25098392, 17270418, 17164243, 17696547
19053182, 17488768, 25078431, 18168684, 21519796, 18143006, 21208140
23321114, 17428148, 17070158, 20438706, 29397017, 17510275, 17172303
28142134, 18610307, 17376318, 17721778, 22198405, 17699423, 18915417
22810422, 18155334, 21233961, 25381434, 19919907, 18321597, 33112882
18185024, 17636008, 17363999, 27593263, 20681968, 17475946, 27463879
patch 33477185 : applied on tue apr 26 21:53:52 cst 2022
unique patch id: 24548176
patch description: "database patch set update : 11.2.0.4.220118 (33477185)"
created on 15 dec 2021, 07:23:11 hrs utc
sub-patch 33128584; "database patch set update : 11.2.0.4.211019 (33128584)"
sub-patch 32758711; "database patch set update : 11.2.0.4.210720 (32758711)"
sub-patch 32328626; "database patch set update : 11.2.0.4.210420 (32328626)"
sub-patch 31983472; "database patch set update : 11.2.0.4.210119 (31983472)"
sub-patch 31537677; "database patch set update : 11.2.0.4.201020 (31537677)"
sub-patch 31103343; "database patch set update : 11.2.0.4.200714 (31103343)"
sub-patch 30670774; "database patch set update : 11.2.0.4.200414 (30670774)"
sub-patch 30298532; "database patch set update : 11.2.0.4.200114 (30298532)"
sub-patch 29913194; "database patch set update : 11.2.0.4.191015 (29913194)"
sub-patch 29497421; "database patch set update : 11.2.0.4.190716 (29497421)"
sub-patch 29141056; "database patch set update : 11.2.0.4.190416 (29141056)"
sub-patch 28729262; "database patch set update : 11.2.0.4.190115 (28729262)"
sub-patch 28204707; "database patch set update : 11.2.0.4.181016 (28204707)"
sub-patch 27734982; "database patch set update : 11.2.0.4.180717 (27734982)"
sub-patch 27338049; "database patch set update : 11.2.0.4.180417 (27338049)"
sub-patch 26925576; "database patch set update : 11.2.0.4.180116 (26925576)"
sub-patch 26392168; "database patch set update : 11.2.0.4.171017 (26392168)"
sub-patch 26609445; "database patch set update : 11.2.0.4.170814 (26609445)"
sub-patch 25869727; "database patch set update : 11.2.0.4.170718 (25869727)"
sub-patch 24732075; "database patch set update : 11.2.0.4.170418 (24732075)"
sub-patch 24006111; "database patch set update : 11.2.0.4.161018 (24006111)"
sub-patch 23054359; "database patch set update : 11.2.0.4.160719 (23054359)"
sub-patch 22502456; "database patch set update : 11.2.0.4.160419 (22502456)"
sub-patch 21948347; "database patch set update : 11.2.0.4.160119 (21948347)"
sub-patch 21352635; "database patch set update : 11.2.0.4.8 (21352635)"
sub-patch 20760982; "database patch set update : 11.2.0.4.7 (20760982)"
sub-patch 20299013; "database patch set update : 11.2.0.4.6 (20299013)"
sub-patch 19769489; "database patch set update : 11.2.0.4.5 (19769489)"
sub-patch 19121551; "database patch set update : 11.2.0.4.4 (19121551)"
sub-patch 18522509; "database patch set update : 11.2.0.4.3 (18522509)"
sub-patch 18031668; "database patch set update : 11.2.0.4.2 (18031668)"
sub-patch 17478514; "database patch set update : 11.2.0.4.1 (17478514)"
bugs fixed:
18619917, 19309466, 28876684, 28855981, 18189036, 19781326, 13609098
16285691, 16756406, 18430495, 17323222, 13854364, 29483723, 19915271
22468255, 19516448, 14458214, 23713236, 23140259, 29434301, 22502493
19540573, 18272672, 16410570, 16494615, 19174430, 21352646, 16901385
16596890, 22243719, 32741584, 18996843, 21387964, 20334344, 17174582
22250006, 17798953, 24307571, 14015842, 18031668, 15955387, 30758943
17391136, 21534893, 16832076, 16065166, 16579084, 25427662, 21179898
24589081, 11786053, 15990359, 17982832, 18685892, 20142975, 24835538
16315398, 20861693, 30018017, 17037130, 17284817, 17643573, 18832544
17891946, 17279227, 17588480, 17291347, 16731148, 21097043, 24528741
22321741, 17165204, 26245237, 17891943, 25205368, 32776891, 17359610
17265217, 17465741, 29621961, 22551446, 31492176, 18191164, 16721594
18614015, 27825893, 18440095, 19769489, 20596234, 25115178, 18482502
16043574, 20936905, 17360606, 22321756, 19211724, 17392698, 19463893
31492164, 29033139, 17477958, 17040764, 18362222, 19463897, 24624166
17853456, 14521849, 17816865, 32190132, 19692824, 21868720, 17951233
25505407, 17040527, 31022191, 24975421, 19888853, 18009564, 20882568
20803583, 23026585, 18604692, 17622427, 16903536, 29483771, 17865671
17883081, 16228604, 17325413, 17082359, 30517516, 12747740, 22168163
16091637, 20569094, 31492144, 17468141, 30365745, 29962939, 19469538
29633753, 20598042, 32775512, 16042673, 23302839, 17437634, 24473736
28734355, 19049453, 33027553, 16941434, 20387265, 16833527, 21343775
17297939, 16069901, 14285317, 22380919, 18436647, 23065323, 31885190
21983325, 31927930, 17853498, 24790914, 23571055, 16542886, 21286665
17365043, 17752995, 25914276, 17296856, 18783224, 22353199, 22083366
28305362, 21419850, 16180763, 23294548, 26679352, 13960236, 25328093
25423453, 18339044, 17282229, 28384353, 25600421, 18856999, 31031715
18259031, 28806384, 21354456, 23725036, 31885162, 18471685, 30237239
17258090, 16344544, 17903598, 17011832, 18135678, 18704244, 17786518
19718981, 25655390, 17242746, 20250147, 19197175, 17390431, 17835627
17672719, 31125948, 17393915, 21566639, 18765602, 21425496, 26544823
22228324, 29962927, 18682983, 30179644, 25165496, 12816846, 31885179
18774543, 31885173, 18747196, 17824637, 21834568, 19429927, 21429602
16524926, 17343514, 19271443, 17019345, 18681862, 17186905, 23330119
17811438, 26474853, 17215560, 16875449, 21380789, 17184721, 18508861
19466309, 33065437, 23330124, 17811429, 17019356, 25654936, 17754782
17752121, 22809871, 17201159, 18308268, 19777862, 16198143, 29027694
18828868, 17586955, 28076295, 19445860, 26654363, 30200680, 22977256
16692232, 27374796, 21142837, 20869721, 17649265, 24555417, 17847764
25879656, 21756699, 19697993, 28364007, 17787259, 30578221, 23628685
30252098, 23007241, 27351628, 18094246, 18460587, 20031873, 17375354
21698350, 26513067, 32153619, 21538567, 18232865, 22683212, 16450169
17478145, 17311728, 17648596, 17308789, 22836801, 21756677, 18674047
33040335, 14084247, 19788303, 22683225, 27534509, 16833845, 18948177
32368789, 17205719, 21756661, 20004021, 17922254, 13837378, 32368792
18084625, 17912217, 11883252, 24842886, 12982566, 26203182, 14176370
14764829, 21847223, 16875230, 28079127, 22568797, 17237521, 29511611
25635149, 16934803, 17848897, 20441797, 20175161, 19831647, 16613964
17532245, 18334586, 17288409, 17341326, 31338362, 17449815, 15913355
16399083, 27404573, 18740837, 20294666, 14565184, 21517440, 17614134
32222473, 19854503, 14245531, 16194160, 18325460, 15979965, 30562923
20671094, 29965888, 27870645, 25093656, 18247991, 16912439, 30562936
17047404, 24433711, 19930276, 22092979, 20506715, 31884535, 23003979
20506706, 13871092, 19272701, 17397545, 16785708, 19461270, 21051862
13829543, 16220077, 17008068, 18061914, 20448824, 30275359, 18674024
29343156, 19689979, 24411921, 23184013, 30275351, 17596908, 17036973
22175564, 22499356, 17612828, 20725343, 31001455, 28199085, 23194294
17630484, 21051858, 20017509, 21051852, 17767676, 17232014, 22893153
12611721, 25555252, 18356166, 17071721, 19315668, 25764020, 16863422
21051840, 17820741, 17267114, 33106822, 18043064, 21538558, 26243698
20324049, 21612959, 30305880, 16392068, 18744139, 24348685, 26746894
17806696, 18628388, 27072923, 14010183, 16595641, 31711889, 17080436
17332800, 20777150, 21453153, 20299015, 18413820, 18264060, 16819962
22465352, 21351877, 21051833, 18673342, 30393318, 30562907, 30562909
29200700, 27441326, 16571443, 18328509, 27567477, 18674465, 16422541
18306996, 19359219, 21424824, 17443671, 17478514, 21067387, 16268425
32846272, 17381384, 18723434, 17235750, 23328639, 22195448, 24570598
21172913, 17655240, 18384391, 16992075, 22195441, 17025461, 30562891
16472716, 19289642, 21502702, 22195457, 20475845, 22148226, 26030218
18331850, 17945983, 13498382, 24652769, 31885230, 18673304, 17610798
19891090, 25369547, 18456514, 8322815, 22657942, 17313525, 17050888
18317531, 19835133, 17495022, 11733603, 18798250, 19285025, 18260550
17390160, 18316692, 19458377, 14368995, 17551063, 21343838, 12905058
14735792, 28612674, 16855292, 23315889, 24480567, 13364795, 33096609
18235390, 18293054, 32190284, 18673325, 30215130, 19393542, 14657740
17532729, 17393683, 17389192, 17783588, 17852463, 19358317, 17441661
14034426, 28254374, 20631274, 19207117, 26569225, 17518652, 24662775
19475971, 31885201, 18282562, 30421204, 19896336, 17348614, 19827973
31883489, 17346671, 31022281, 19791273, 32359044, 24476274, 22296366
13853126, 18273830, 17570606, 13558557, 20425790, 26007010, 16685417
31885223, 18180390, 14692762, 18159793, 17027426, 24476265, 23177648
17851160, 16870214, 18202441, 17227073, 32984679, 20657411, 19006849
22606521, 20506699, 28000269, 23536835, 17761775, 20382309, 16306373
31885213, 17801017, 19680952, 16850630, 17694209, 26667015, 17877323
18230522, 25288078, 24563422, 17446237, 17889549, 17551674, 16233738
22730454, 17571039, 26667023, 19972570, 18849970, 21532755, 20860659
22905130, 21168487, 17016369, 21263635, 17231779, 17717883, 21343897
27710072, 18522509, 23209741, 17484731, 21972320, 19972569, 19972568
17716305, 21059919, 19972566, 19972564, 26667032, 17394950, 26318200
20657441, 17551699, 17006570, 18051556, 12364061, 18029658, 17546973
18262334, 19699191, 30387666, 17227277, 32676350, 18018515, 16943711
18388363, 17982555, 20828947, 18098207, 18436307, 19584068, 16898135
13936038, 19601762, 31010960, 14054676, 25505394, 18228645, 29782211
19013183, 25042823, 17721717, 17239687, 25248384, 25634317, 20134113
20273319, 28501075, 31945038, 30624864, 21063322, 31834759, 17344412
22507210, 32097882, 16354467, 21795111, 25505371, 16777840, 25879984
17811456, 19730508, 17385178, 18166013, 17484762, 10136473, 6599380
20717359, 20296213, 27097854, 13955826, 18193833, 17545847, 16837842
18964939, 19871910, 25505382, 14786201, 17811447, 18554763, 21132297
25957038, 20004087, 17889583, 19544839, 26631046, 22507234, 24719736
18868646, 17042658, 20627866, 14106803, 13951456, 10088587, 18139690
18277454, 13680635, 22750215, 25823754, 18554871, 18515268, 20169408
24908321, 17274537, 17602269, 26575788, 19032867, 17762296, 14829250
16929165, 14602788, 28849751, 21794615, 18899974, 29944660, 18441944
14521218, 17811789, 20074391, 14852021, 17705023, 13645875, 24316947
16668584, 17786278, 25947799, 20879889, 19578350, 28022101, 22594718
16384983, 26439748, 17957017, 19121551, 17570240, 19788842, 18382302
27086138, 21330264, 21197626, 14338435, 13944971, 21656630, 22826067
18886413, 17156148, 17936109, 20509482, 27255377, 24717859, 18762750
21526048, 24560906, 18096714, 17238511, 26078387, 27053456, 20144308
25364628, 18244962, 19433930, 20476175, 19297917, 19330795, 31506720
21174504, 18280813, 28819280, 17614227, 28357401, 32335769, 21911701
25809524, 17006183, 18092127, 19727057, 17695685, 26039623, 22820579
20856766, 15861775, 17258582, 21668627, 19487147, 20925795, 28100487
22760679, 26482376, 19554106, 21629064, 18199537, 18091059, 17299889
26999139, 21538485, 17546761, 26336977, 25775213, 18155762, 30803210
31683205, 31194264, 16956380, 19207156, 14705949, 31836113, 23105538
26198926, 19258504, 16314254, 17890099, 17246576, 17655634, 16989630
20067212, 19721304, 25077278, 19490948, 18203835, 18203838, 18973907
18203837, 29483672, 19615136, 17587063, 18000422, 18641451, 18090142
21641760, 17019086, 30559616, 19373893, 18373438, 21820934, 18641461
17346091, 21422580, 22351572, 18604493, 23008056, 22901797, 18610915
22666802, 17892268, 31668061, 17501491, 20907061, 14354737, 17835048
21787056, 22195485, 22782647, 17082983, 23266217, 18641419, 16618694
14133975, 22195492, 18331812, 18093615, 24385983, 25897615, 20513399
21281607, 13866822, 18841764, 17600719, 17842825, 20558005, 17088068
9756271, 22195465, 18440047, 32834168, 19211433, 21515534, 20331945
22686674, 18384537, 18607546, 17254374, 18315328, 31172207, 23115139
28790634, 21394225, 16360112, 22195477, 17726838, 18510194, 17571306
24766121, 17302277, 21842740, 33090781, 17551709, 28566241, 26910644
17634921, 25489607, 16538760
patch 32758914 : applied on tue apr 26 21:51:56 cst 2022
unique patch id: 24257847
patch description: "ocw patch set update 11.2.0.4.210720 (32758914)"
created on 13 jul 2021, 11:48:50 hrs pst8pdt
bugs fixed:
19270660, 18328800, 18508710, 18691572, 20038451, 21251192, 22162062
21232394, 20365005, 17336871, 17750548, 17387214, 17617807, 14497275
20219458, 17733927, 18180541, 23757020, 18962892, 17292250, 17378618
16759171, 20110156, 17843489, 17065496, 21694632, 13991403, 18419139
17273020, 22762046, 17336884, 17155238, 21245437, 20012766, 18053580
18261183, 17336889, 20218012, 17013634, 17886392, 24422155, 20995001
17039197, 17947785, 16317771, 10052729, 22353346, 20340620, 16237657
20317221, 15917869, 18199185, 18399991, 20186278, 18024089, 17374271
16849642, 20246071, 20746251, 14270845, 23621494, 20552947, 18414137
18882642, 17001914, 17927970, 29323944, 14378120, 16346413, 15986647
17336898, 18068871, 21222147, 18143836, 16206997, 21982225, 25490238
19168690, 20235511, 18343490, 21875360, 16613232, 19276791, 17722664
20440643, 12928658, 18952577, 16249829, 18520351, 18226143, 18265482
16076412, 18229842, 17172091, 20676340, 17818075, 20091753, 18231837
14373486, 20136892, 17483479, 20551654, 18120545, 18729166, 13843841
21225209, 17405302, 18709496, 18330979, 18744838, 14525998, 18187697
17087371, 20531190, 14385860, 20598625, 18348155, 19479503, 12928592
17516024, 18370031, 17764053, 19272663, 17551223, 14671408, 18272135
14207615, 24692493, 21255373, 17500165, 18875012, 14769643, 19558324
25656952, 18464784, 18848125, 19241857, 14851828, 17955615, 30158572
20315294, 14693336, 20014326, 17352230, 16284825, 17238586, 17089344
17405605, 21327402, 17531342, 26546632, 19398098, 17640316, 17159489
13823394, 16543190, 22024217, 17983675, 20795241, 28973538, 16281493
17598201, 28553832, 18346135, 17481314, 15986311, 19601468, 17208793
18999857, 18700935, 14076173, 18428146, 16709532, 18352845, 17435488
17592037, 20408163, 18352846, 19616601, 17391726, 17387779, 15851860
14777968, 20141091, 16206882, 19885321, 20175174, 21113068, 17305100
15832129, 16901346, 25591658, 17985714, 18536826, 17780903, 18752378
18946768, 16875342, 16876500, 17769597, 19955755, 16429265, 31999107
18336452, 23186035, 17273003, 17209968, 25484507, 17059927, 17046460
20094984, 19319357, 16988311, 18053631, 16867761, 18774591, 20235486
21442094, 19359787, 15869775, 19642566, 17447588, 21152052, 16798862
15920201
--------------------------------------------------------------------------------
opatch succeeded.
[grid@rac1:/home/grid]$$oracle_home/opatch/opatch lspatches
33112794;acfs patch set update 11.2.0.4.210720 (33112794)
33477185;database patch set update : 11.2.0.4.220118 (33477185)
32758914;ocw patch set update 11.2.0.4.210720 (32758914)
opatch succeeded.
```验证db升级结果```
[root@rac1 ~]# su - oracle
[oracle@rac1:/home/oracle]$$oracle_home/opatch/opatch lsinventory
oracle interim patch installer version 11.2.0.3.33
米乐app官网下载 copyright (c) 2022, oracle corporation. all rights reserved.
oracle home : /oracle/app/oracle/product/11.2.0/db_1
central inventory : /oracle/app/orainventory
from : /oracle/app/oracle/product/11.2.0/db_1/orainst.loc
opatch version : 11.2.0.3.33
oui version : 11.2.0.4.0
log file location : /oracle/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch2022-04-26_22-17-06pm_1.log
lsinventory output file location : /oracle/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/lsinv/lsinventory2022-04-26_22-17-06pm.txt
--------------------------------------------------------------------------------
local machine information::
hostname: rac1
aru platform id: 226
aru platform description:: linux x86-64
installed top-level products (1):
oracle database 11g 11.2.0.4.0
there are 1 products installed in this oracle home.
interim patches (2) :
patch 33477185 : applied on tue apr 26 22:06:06 cst 2022
unique patch id: 24548176
patch description: "database patch set update : 11.2.0.4.220118 (33477185)"
created on 15 dec 2021, 07:23:11 hrs utc
sub-patch 33128584; "database patch set update : 11.2.0.4.211019 (33128584)"
sub-patch 32758711; "database patch set update : 11.2.0.4.210720 (32758711)"
sub-patch 32328626; "database patch set update : 11.2.0.4.210420 (32328626)"
sub-patch 31983472; "database patch set update : 11.2.0.4.210119 (31983472)"
sub-patch 31537677; "database patch set update : 11.2.0.4.201020 (31537677)"
sub-patch 31103343; "database patch set update : 11.2.0.4.200714 (31103343)"
sub-patch 30670774; "database patch set update : 11.2.0.4.200414 (30670774)"
sub-patch 30298532; "database patch set update : 11.2.0.4.200114 (30298532)"
sub-patch 29913194; "database patch set update : 11.2.0.4.191015 (29913194)"
sub-patch 29497421; "database patch set update : 11.2.0.4.190716 (29497421)"
sub-patch 29141056; "database patch set update : 11.2.0.4.190416 (29141056)"
sub-patch 28729262; "database patch set update : 11.2.0.4.190115 (28729262)"
sub-patch 28204707; "database patch set update : 11.2.0.4.181016 (28204707)"
sub-patch 27734982; "database patch set update : 11.2.0.4.180717 (27734982)"
sub-patch 27338049; "database patch set update : 11.2.0.4.180417 (27338049)"
sub-patch 26925576; "database patch set update : 11.2.0.4.180116 (26925576)"
sub-patch 26392168; "database patch set update : 11.2.0.4.171017 (26392168)"
sub-patch 26609445; "database patch set update : 11.2.0.4.170814 (26609445)"
sub-patch 25869727; "database patch set update : 11.2.0.4.170718 (25869727)"
sub-patch 24732075; "database patch set update : 11.2.0.4.170418 (24732075)"
sub-patch 24006111; "database patch set update : 11.2.0.4.161018 (24006111)"
sub-patch 23054359; "database patch set update : 11.2.0.4.160719 (23054359)"
sub-patch 22502456; "database patch set update : 11.2.0.4.160419 (22502456)"
sub-patch 21948347; "database patch set update : 11.2.0.4.160119 (21948347)"
sub-patch 21352635; "database patch set update : 11.2.0.4.8 (21352635)"
sub-patch 20760982; "database patch set update : 11.2.0.4.7 (20760982)"
sub-patch 20299013; "database patch set update : 11.2.0.4.6 (20299013)"
sub-patch 19769489; "database patch set update : 11.2.0.4.5 (19769489)"
sub-patch 19121551; "database patch set update : 11.2.0.4.4 (19121551)"
sub-patch 18522509; "database patch set update : 11.2.0.4.3 (18522509)"
sub-patch 18031668; "database patch set update : 11.2.0.4.2 (18031668)"
sub-patch 17478514; "database patch set update : 11.2.0.4.1 (17478514)"
bugs fixed:
18619917, 19309466, 28876684, 28855981, 18189036, 19781326, 13609098
16285691, 16756406, 18430495, 17323222, 13854364, 29483723, 19915271
22468255, 19516448, 14458214, 23713236, 23140259, 29434301, 22502493
19540573, 18272672, 16410570, 16494615, 19174430, 21352646, 16901385
16596890, 22243719, 32741584, 18996843, 21387964, 20334344, 17174582
22250006, 17798953, 24307571, 14015842, 18031668, 15955387, 30758943
17391136, 21534893, 16832076, 16065166, 16579084, 25427662, 21179898
24589081, 11786053, 15990359, 17982832, 18685892, 20142975, 24835538
16315398, 20861693, 30018017, 17037130, 17284817, 17643573, 18832544
17891946, 17279227, 17588480, 17291347, 16731148, 21097043, 24528741
22321741, 17165204, 26245237, 17891943, 25205368, 32776891, 17359610
17265217, 17465741, 29621961, 22551446, 31492176, 18191164, 16721594
18614015, 27825893, 18440095, 19769489, 20596234, 25115178, 18482502
16043574, 20936905, 17360606, 22321756, 19211724, 17392698, 19463893
31492164, 29033139, 17477958, 17040764, 18362222, 19463897, 24624166
17853456, 14521849, 17816865, 32190132, 19692824, 21868720, 17951233
25505407, 17040527, 31022191, 24975421, 19888853, 18009564, 20882568
20803583, 23026585, 18604692, 17622427, 16903536, 29483771, 17865671
17883081, 16228604, 17325413, 17082359, 30517516, 12747740, 22168163
16091637, 20569094, 31492144, 17468141, 30365745, 29962939, 19469538
29633753, 20598042, 32775512, 16042673, 23302839, 17437634, 24473736
28734355, 19049453, 33027553, 16941434, 20387265, 16833527, 21343775
17297939, 16069901, 14285317, 22380919, 18436647, 23065323, 31885190
21983325, 31927930, 17853498, 24790914, 23571055, 16542886, 21286665
17365043, 17752995, 25914276, 17296856, 18783224, 22353199, 22083366
28305362, 21419850, 16180763, 23294548, 26679352, 13960236, 25328093
25423453, 18339044, 17282229, 28384353, 25600421, 18856999, 31031715
18259031, 28806384, 21354456, 23725036, 31885162, 18471685, 30237239
17258090, 16344544, 17903598, 17011832, 18135678, 18704244, 17786518
19718981, 25655390, 17242746, 20250147, 19197175, 17390431, 17835627
17672719, 31125948, 17393915, 21566639, 18765602, 21425496, 26544823
22228324, 29962927, 18682983, 30179644, 25165496, 12816846, 31885179
18774543, 31885173, 18747196, 17824637, 21834568, 19429927, 21429602
16524926, 17343514, 19271443, 17019345, 18681862, 17186905, 23330119
17811438, 26474853, 17215560, 16875449, 21380789, 17184721, 18508861
19466309, 33065437, 23330124, 17811429, 17019356, 25654936, 17754782
17752121, 22809871, 17201159, 18308268, 19777862, 16198143, 29027694
18828868, 17586955, 28076295, 19445860, 26654363, 30200680, 22977256
16692232, 27374796, 21142837, 20869721, 17649265, 24555417, 17847764
25879656, 21756699, 19697993, 28364007, 17787259, 30578221, 23628685
30252098, 23007241, 27351628, 18094246, 18460587, 20031873, 17375354
21698350, 26513067, 32153619, 21538567, 18232865, 22683212, 16450169
17478145, 17311728, 17648596, 17308789, 22836801, 21756677, 18674047
33040335, 14084247, 19788303, 22683225, 27534509, 16833845, 18948177
32368789, 17205719, 21756661, 20004021, 17922254, 13837378, 32368792
18084625, 17912217, 11883252, 24842886, 12982566, 26203182, 14176370
14764829, 21847223, 16875230, 28079127, 22568797, 17237521, 29511611
25635149, 16934803, 17848897, 20441797, 20175161, 19831647, 16613964
17532245, 18334586, 17288409, 17341326, 31338362, 17449815, 15913355
16399083, 27404573, 18740837, 20294666, 14565184, 21517440, 17614134
32222473, 19854503, 14245531, 16194160, 18325460, 15979965, 30562923
20671094, 29965888, 27870645, 25093656, 18247991, 16912439, 30562936
17047404, 24433711, 19930276, 22092979, 20506715, 31884535, 23003979
20506706, 13871092, 19272701, 17397545, 16785708, 19461270, 21051862
13829543, 16220077, 17008068, 18061914, 20448824, 30275359, 18674024
29343156, 19689979, 24411921, 23184013, 30275351, 17596908, 17036973
22175564, 22499356, 17612828, 20725343, 31001455, 28199085, 23194294
17630484, 21051858, 20017509, 21051852, 17767676, 17232014, 22893153
12611721, 25555252, 18356166, 17071721, 19315668, 25764020, 16863422
21051840, 17820741, 17267114, 33106822, 18043064, 21538558, 26243698
20324049, 21612959, 30305880, 16392068, 18744139, 24348685, 26746894
17806696, 18628388, 27072923, 14010183, 16595641, 31711889, 17080436
17332800, 20777150, 21453153, 20299015, 18413820, 18264060, 16819962
22465352, 21351877, 21051833, 18673342, 30393318, 30562907, 30562909
29200700, 27441326, 16571443, 18328509, 27567477, 18674465, 16422541
18306996, 19359219, 21424824, 17443671, 17478514, 21067387, 16268425
32846272, 17381384, 18723434, 17235750, 23328639, 22195448, 24570598
21172913, 17655240, 18384391, 16992075, 22195441, 17025461, 30562891
16472716, 19289642, 21502702, 22195457, 20475845, 22148226, 26030218
18331850, 17945983, 13498382, 24652769, 31885230, 18673304, 17610798
19891090, 25369547, 18456514, 8322815, 22657942, 17313525, 17050888
18317531, 19835133, 17495022, 11733603, 18798250, 19285025, 18260550
17390160, 18316692, 19458377, 14368995, 17551063, 21343838, 12905058
14735792, 28612674, 16855292, 23315889, 24480567, 13364795, 33096609
18235390, 18293054, 32190284, 18673325, 30215130, 19393542, 14657740
17532729, 17393683, 17389192, 17783588, 17852463, 19358317, 17441661
14034426, 28254374, 20631274, 19207117, 26569225, 17518652, 24662775
19475971, 31885201, 18282562, 30421204, 19896336, 17348614, 19827973
31883489, 17346671, 31022281, 19791273, 32359044, 24476274, 22296366
13853126, 18273830, 17570606, 13558557, 20425790, 26007010, 16685417
31885223, 18180390, 14692762, 18159793, 17027426, 24476265, 23177648
17851160, 16870214, 18202441, 17227073, 32984679, 20657411, 19006849
22606521, 20506699, 28000269, 23536835, 17761775, 20382309, 16306373
31885213, 17801017, 19680952, 16850630, 17694209, 26667015, 17877323
18230522, 25288078, 24563422, 17446237, 17889549, 17551674, 16233738
22730454, 17571039, 26667023, 19972570, 18849970, 21532755, 20860659
22905130, 21168487, 17016369, 21263635, 17231779, 17717883, 21343897
27710072, 18522509, 23209741, 17484731, 21972320, 19972569, 19972568
17716305, 21059919, 19972566, 19972564, 26667032, 17394950, 26318200
20657441, 17551699, 17006570, 18051556, 12364061, 18029658, 17546973
18262334, 19699191, 30387666, 17227277, 32676350, 18018515, 16943711
18388363, 17982555, 20828947, 18098207, 18436307, 19584068, 16898135
13936038, 19601762, 31010960, 14054676, 25505394, 18228645, 29782211
19013183, 25042823, 17721717, 17239687, 25248384, 25634317, 20134113
20273319, 28501075, 31945038, 30624864, 21063322, 31834759, 17344412
22507210, 32097882, 16354467, 21795111, 25505371, 16777840, 25879984
17811456, 19730508, 17385178, 18166013, 17484762, 10136473, 6599380
20717359, 20296213, 27097854, 13955826, 18193833, 17545847, 16837842
18964939, 19871910, 25505382, 14786201, 17811447, 18554763, 21132297
25957038, 20004087, 17889583, 19544839, 26631046, 22507234, 24719736
18868646, 17042658, 20627866, 14106803, 13951456, 10088587, 18139690
18277454, 13680635, 22750215, 25823754, 18554871, 18515268, 20169408
24908321, 17274537, 17602269, 26575788, 19032867, 17762296, 14829250
16929165, 14602788, 28849751, 21794615, 18899974, 29944660, 18441944
14521218, 17811789, 20074391, 14852021, 17705023, 13645875, 24316947
16668584, 17786278, 25947799, 20879889, 19578350, 28022101, 22594718
16384983, 26439748, 17957017, 19121551, 17570240, 19788842, 18382302
27086138, 21330264, 21197626, 14338435, 13944971, 21656630, 22826067
18886413, 17156148, 17936109, 20509482, 27255377, 24717859, 18762750
21526048, 24560906, 18096714, 17238511, 26078387, 27053456, 20144308
25364628, 18244962, 19433930, 20476175, 19297917, 19330795, 31506720
21174504, 18280813, 28819280, 17614227, 28357401, 32335769, 21911701
25809524, 17006183, 18092127, 19727057, 17695685, 26039623, 22820579
20856766, 15861775, 17258582, 21668627, 19487147, 20925795, 28100487
22760679, 26482376, 19554106, 21629064, 18199537, 18091059, 17299889
26999139, 21538485, 17546761, 26336977, 25775213, 18155762, 30803210
31683205, 31194264, 16956380, 19207156, 14705949, 31836113, 23105538
26198926, 19258504, 16314254, 17890099, 17246576, 17655634, 16989630
20067212, 19721304, 25077278, 19490948, 18203835, 18203838, 18973907
18203837, 29483672, 19615136, 17587063, 18000422, 18641451, 18090142
21641760, 17019086, 30559616, 19373893, 18373438, 21820934, 18641461
17346091, 21422580, 22351572, 18604493, 23008056, 22901797, 18610915
22666802, 17892268, 31668061, 17501491, 20907061, 14354737, 17835048
21787056, 22195485, 22782647, 17082983, 23266217, 18641419, 16618694
14133975, 22195492, 18331812, 18093615, 24385983, 25897615, 20513399
21281607, 13866822, 18841764, 17600719, 17842825, 20558005, 17088068
9756271, 22195465, 18440047, 32834168, 19211433, 21515534, 20331945
22686674, 18384537, 18607546, 17254374, 18315328, 31172207, 23115139
28790634, 21394225, 16360112, 22195477, 17726838, 18510194, 17571306
24766121, 17302277, 21842740, 33090781, 17551709, 28566241, 26910644
17634921, 25489607, 16538760
patch 32758914 : applied on tue apr 26 22:02:02 cst 2022
unique patch id: 24257847
patch description: "ocw patch set update 11.2.0.4.210720 (32758914)"
created on 13 jul 2021, 11:48:40 hrs pst8pdt
bugs fixed:
19270660, 18328800, 18508710, 18691572, 20038451, 21251192, 22162062
21232394, 20365005, 17336871, 17750548, 17387214, 17617807, 14497275
20219458, 17733927, 18180541, 23757020, 18962892, 17292250, 17378618
16759171, 20110156, 17843489, 17065496, 21694632, 13991403, 18419139
17273020, 22762046, 17336884, 17155238, 21245437, 20012766, 18053580
18261183, 17336889, 20218012, 17013634, 17886392, 24422155, 20995001
17039197, 17947785, 16317771, 10052729, 22353346, 20340620, 16237657
20317221, 15917869, 18199185, 18399991, 20186278, 18024089, 17374271
16849642, 20246071, 20746251, 14270845, 23621494, 20552947, 18414137
18882642, 17001914, 17927970, 29323944, 14378120, 16346413, 15986647
17336898, 18068871, 21222147, 18143836, 16206997, 21982225, 25490238
19168690, 20235511, 18343490, 21875360, 16613232, 19276791, 17722664
20440643, 12928658, 18952577, 16249829, 18520351, 18226143, 18265482
16076412, 18229842, 17172091, 20676340, 17818075, 20091753, 18231837
14373486, 20136892, 17483479, 20551654, 18120545, 18729166, 13843841
21225209, 17405302, 18709496, 18330979, 18744838, 14525998, 18187697
17087371, 20531190, 14385860, 20598625, 18348155, 19479503, 12928592
17516024, 18370031, 17764053, 19272663, 17551223, 14671408, 18272135
14207615, 24692493, 21255373, 17500165, 18875012, 14769643, 19558324
25656952, 18464784, 18848125, 19241857, 14851828, 17955615, 30158572
20315294, 14693336, 20014326, 17352230, 16284825, 17238586, 17089344
17405605, 21327402, 17531342, 26546632, 19398098, 17640316, 17159489
13823394, 16543190, 22024217, 17983675, 20795241, 28973538, 16281493
17598201, 28553832, 18346135, 17481314, 15986311, 19601468, 17208793
18999857, 18700935, 14076173, 18428146, 16709532, 18352845, 17435488
17592037, 20408163, 18352846, 19616601, 17391726, 17387779, 15851860
14777968, 20141091, 16206882, 19885321, 20175174, 21113068, 17305100
15832129, 16901346, 25591658, 17985714, 18536826, 17780903, 18752378
18946768, 16875342, 16876500, 17769597, 19955755, 16429265, 31999107
18336452, 23186035, 17273003, 17209968, 25484507, 17059927, 17046460
20094984, 19319357, 16988311, 18053631, 16867761, 18774591, 20235486
21442094, 19359787, 15869775, 19642566, 17447588, 21152052, 16798862
15920201
--------------------------------------------------------------------------------
opatch succeeded.
[oracle@rac1:/home/oracle]$$oracle_home/opatch/opatch lspatches
33477185;database patch set update : 11.2.0.4.220118 (33477185)
32758914;ocw patch set update 11.2.0.4.210720 (32758914)
opatch succeeded.
```然后开始为节点2升级gi、db的psu```
[root@rac2 ~]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/11.2.0/grid
executing /oracle/app/11.2.0/grid/perl/bin/perl /oracle/app/11.2.0/grid/opatch/crs/patch11203.pl -patchdir /psu -patchn 33575261 -oh /oracle/app/11.2.0/grid -paramfile /oracle/app/11.2.0/grid/crs/install/crsconfig_params
this is the main log file: /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-22-28.log
this file will show your detected configuration and all the steps that opatchauto attempted to do on your system:
/oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-22-28.report.log
2022-04-26 22:22:28: starting clusterware patch setup
using configuration parameter file: /oracle/app/11.2.0/grid/crs/install/crsconfig_params
stopping crs...
stopped crs successfully
patch /psu/33575261/32758914 apply successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33477185 apply successful for home /oracle/app/11.2.0/grid
patch /psu/33575261/33112794 apply successful for home /oracle/app/11.2.0/grid
starting crs...
installing trace file analyzer
crs-4124: oracle high availability services startup failed.
crs-4000: command start failed, or completed with errors. `到了这个地方会卡住一段时间，新开窗口执行crsctl start has启动has`
opatch auto succeeded.
[root@rac2 ~]# /oracle/app/11.2.0/grid/opatch/opatch auto /psu/33575261/ -oh /oracle/app/oracle/product/11.2.0/db_1
executing /oracle/app/11.2.0/grid/perl/bin/perl /oracle/app/11.2.0/grid/opatch/crs/patch11203.pl -patchdir /psu -patchn 33575261 -oh /oracle/app/oracle/product/11.2.0/db_1 -paramfile /oracle/app/11.2.0/grid/crs/install/crsconfig_params
this is the main log file: /oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-42-50.log
this file will show your detected configuration and all the steps that opatchauto attempted to do on your system:
/oracle/app/11.2.0/grid/cfgtoollogs/opatchauto2022-04-26_22-42-50.report.log
2022-04-26 22:42:50: starting clusterware patch setup
using configuration parameter file: /oracle/app/11.2.0/grid/crs/install/crsconfig_params
stopping rac /oracle/app/oracle/product/11.2.0/db_1 ...
stopped rac /oracle/app/oracle/product/11.2.0/db_1 successfully
patch /psu/33575261/32758914/custom/server/32758914 apply successful for home /oracle/app/oracle/product/11.2.0/db_1
patch /psu/33575261/33477185 apply successful for home /oracle/app/oracle/product/11.2.0/db_1
starting rac /oracle/app/oracle/product/11.2.0/db_1 ...
started rac /oracle/app/oracle/product/11.2.0/db_1 successfully
opatch auto succeeded.
7，执行sql更新数据字典
[oracle@rac1:/home/oracle]$cd $oracle_home/rdbms/admin
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/rdbms/admin]$sqlplus /nolog
sql*plus: release 11.2.0.4.0 production on tue apr 26 22:52:22 2022
米乐app官网下载 copyright (c) 1982, 2013, oracle. all rights reserved.
@>connect / as sysdba
connected to an idle instance.
sys@orcl1>startup
oracle instance started.
total system global area 1453092864 bytes
fixed size 2253304 bytes
variable size 1325403656 bytes
database buffers 117440512 bytes
redo buffers 7995392 bytes
ora-00205: error in identifying control file, check alert log for more info
查看alert日志，有大量如下报错信息：
tue apr 26 22:53:57 2022
success: diskgroup data was dismounted
error: diskgroup data was not mounted
ora-01565: unable to open spfile data/orcl/spfileorcl.ora.
ora-15025: could not open disk "/dev/asm-data1"
ora-27041: unable to open file
linux-x86_64 error: 13: permission denied
additional information: 9
ora-15025: could not open disk "/dev/asm-data2"
ora-27041: unable to open file
linux-x86_64 error: 13: permission denied
additional information: 9
success: diskgroup data was dismounted
error: diskgroup data was not mounted
ora-01565: unable to open spfile data/orcl/spfileorcl.ora.
ora-15025: could not open disk "/dev/asm-data1"
ora-27041: unable to open file
linux-x86_64 error: 13: permission denied
additional information: 9
这跟$oracle_home/bin/oracle这个文件的属性有关系：
在安装oracle soft之后：
$oracle_home/bin/oracle文件属性权限为oracle:oninstall 751(-rwxr-x--x)
在安装asm建库(dbca)时：
此文件属性会自动被修改为oracle:asmadmin6751(-rwsr-s--x)
在psu apply之后：
此文件属性又被自动被修改为oracle:oinstall751(-rwxr-x--x)，修改此文件属主及权限如下：
[root@rac1 ~]# chown oracle:asmadmin /oracle/app/oracle/product/11.2.0/db_1/bin/oracle
[root@rac1 ~]# chmod 6751 /oracle/app/oracle/product/11.2.0/db_1/bin/oracle
[root@rac1 ~]# ls -al /oracle/app/oracle/product/11.2.0/db_1/bin/oracle
-rwsr-s--x 1 oracle asmadmin 239988728 apr 26 22:07 /oracle/app/oracle/product/11.2.0/db_1/bin/oracle
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/rdbms/admin]$sqlplus / as sysdba
sys@orcl1>startup
ora-01012: not logged on
sys@orcl1>shutdown abort
sys@orcl1>exit
[oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/rdbms/admin]$sqlplus /nolog
sql*plus: release 11.2.0.4.0 production on tue apr 26 23:03:26 2022
米乐app官网下载 copyright (c) 1982, 2013, oracle. all rights reserved.
@>connect / as sysdba
connected to an idle instance.
sys@orcl1>startup
oracle instance started.
total system global area 1453092864 bytes
fixed size 2253304 bytes
variable size 1325403656 bytes
database buffers 117440512 bytes
redo buffers 7995392 bytes
database mounted.
database opened.
sys@orcl1>@catbundle.sql psu apply
sys@orcl1>col action_time for a30
sys@orcl1>col action for a10
sys@orcl1>col namespace for a10
sys@orcl1>col version for a20
sys@orcl1>col comments for a10
sys@orcl1>set linesize 300
sys@orcl1>select * from dba_registry_history;
action_time action namespace version id bundle_series comments
------------------------------ ---------- ---------- -------------------- ---------- ------------------------------ ----------
24-aug-13 12.03.45.119862 pm apply server 11.2.0.4 0 psu patchset 1
1.2.0.2.0
26-apr-22 09.24.31.313733 am apply server 11.2.0.4 0 psu patchset 1
1.2.0.2.0
26-apr-22 11.07.13.586425 pm apply server 11.2.0.4 220118 psu psu 11.2.0
.4.220118
然后启动节点2的数据库，启动的时候和节点1有同样的报错，按照节点1的处理方法即可。
八、修改ip
```现有ip配置```
#public ip
172.22.180.221 rac1
172.22.180.222 rac2
#private ip
10.0.0.1 rac1-priv
10.0.0.2 rac2-priv
#vip
172.22.180.223 rac1-vip
172.22.180.224 rac2-vip
#scanip
172.22.180.225 scan
```修改后的ip配置```
192.168.10.221 rac1
192.168.10.222 rac2
#private ip
172.0.0.221 rac1-priv
172.0.0.222 rac2-priv
#vip
192.168.10.223 rac1-vip
192.168.10.224 rac2-vip
#scanip
192.168.10.225 scan
当前集群网卡ip配置信息
[root@rac1 ~]# oifcfg getif
ens33 172.22.180.0 global public
ens34 10.0.0.0 global cluster_interconnect
当前vip配置信息
[root@rac1 ~]# srvctl config nodeapps -a
network exists: 1/172.22.180.0/255.255.255.0/ens33, type static
vip exists: /rac1-vip/172.22.180.223/172.22.180.0/255.255.255.0/ens33, hosting node rac1
vip exists: /rac2-vip/172.22.180.224/172.22.180.0/255.255.255.0/ens33, hosting node rac2
当前网卡配置文件
[root@rac1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens33
type="ethernet"
proxy_method="none"
browser_only="no"
bootproto="none"
defroute="yes"
ipv4_failure_fatal="no"
ipv6init="yes"
ipv6_autoconf="yes"
ipv6_defroute="yes"
ipv6_failure_fatal="no"
ipv6_addr_gen_mode="stable-privacy"
name="ens33"
uuid="92ad197e-1585-4848-ad95-e7b64549d652"
device="ens33"
onboot="yes"
ipv6_privacy="no"
ipaddr="172.22.180.221"
prefix="24"
gateway="172.22.180.254"
[root@rac1 ~]# cat /etc/sysconfig/network-scripts/ifcfg-ens34
type=ethernet
proxy_method=none
browser_only=no
bootproto=none
defroute=yes
ipv4_failure_fatal=no
ipv6init=yes
ipv6_autoconf=yes
ipv6_defroute=yes
ipv6_failure_fatal=no
ipv6_addr_gen_mode=stable-privacy
name=ens34
uuid=3eea2291-283b-4267-b029-6e8bc4748198
device=ens34
onboot=yes
ipaddr=10.0.0.1
prefix=24
gateway=10.0.0.254
ipv6_privacy=no
1，备份相关配置文件
手动备份ocr
[root@rac1 ~]# ocrconfig -manualbackup
rac1 2022/04/28 14:48:39 /oracle/app/11.2.0/grid/cdata/orcl-cluster/backup_20220428_144839.ocr
[root@rac1 ~]# ocrconfig -export /tmp/orc_bak
备份网卡配置信息
[root@rac1 ~]# cp /etc/sysconfig/network-scripts/ifcfg-ens33 /etc/sysconfig/network-scripts/ifcfg-ens33.bak
[root@rac1 ~]# cp /etc/sysconfig/network-scripts/ifcfg-ens34 /etc/sysconfig/network-scripts/ifcfg-ens34.bak
备份hosts文件
[root@rac1 ~]# cp /etc/hosts /etc/hosts.bak
2，停止相关资源
-
停止监听
[grid@rac1:/home/grid]$srvctl status listener listener listener is enabled listener listener is running on node(s): rac2,rac1 [grid@rac1:/home/grid]$srvctl stop listener [grid@rac1:/home/grid]$srvctl status listener listener listener is enabled listener listener is not running -
停止数据库
[grid@rac1:/home/grid]$srvctl status database -d orcl instance orcl1 is running on node rac1 instance orcl2 is running on node rac2 [grid@rac1:/home/grid]$srvctl stop database -d orcl [grid@rac1:/home/grid]$srvctl status database -d orcl instance orcl1 is not running on node rac1 instance orcl2 is not running on node rac2 -
停止vip
[grid@rac1:/home/grid]$srvctl status vip -n rac1 vip rac1-vip is enabled vip rac1-vip is running on node: rac1 [grid@rac1:/home/grid]$srvctl status vip -n rac2 vip rac2-vip is enabled vip rac2-vip is running on node: rac2 [grid@rac1:/home/grid]$srvctl stop vip -n rac1 [grid@rac1:/home/grid]$srvctl stop vip -n rac2 [root@rac1 ~]# srvctl status vip -n rac1 vip rac1-vip is enabled vip rac1-vip is not running [root@rac1 ~]# srvctl status vip -n rac2 vip rac2-vip is enabled vip rac2-vip is not running -
停止sacn_listener
[root@rac1 ~]# srvctl status scan_listener scan listener listener_scan1 is enabled scan listener listener_scan1 is running on node rac1 [root@rac1 ~]# srvctl disable scan_listener [root@rac1 ~]# srvctl stop scan_listener [root@rac1 ~]# srvctl status scan_listener scan listener listener_scan1 is disabled scan listener listener_scan1 is not running -
停止scan
[root@rac1 ~]# srvctl status scan scan vip scan1 is enabled scan vip scan1 is running on node rac1 [root@rac1 ~]# srvctl stop scan [root@rac1 ~]# srvctl status scan scan vip scan1 is disabled scan vip scan1 is not running -
⚠注意：不用停止两台节点的crs，否则在修改public ip的时候会出现如下报错
[root@rac1 ~]# oifcfg delif -global ens33/172.22.180.0 prif-10: failed to initialize the cluster registry [root@rac1 ~]# oifcfg delif -global ens33/172.22.180.0 prif-33: failed to set or delete interface because hosts could not be discovered crs-02307: no gpnp services on requested remote hosts. prif-32: error in checking for profile availability for host rac2 crs-02306: gpnp service on host "rac2" not found.
3，修改public ip
-
删除集群网卡配置
[root@rac1 ~]# oifcfg delif -global ens33/172.22.180.0 -
配置新的public地址
[root@rac1 ~]# oifcfg setif -global ens33/192.168.10.0:public [root@rac1 ~]# oifcfg getif ens34 10.0.0.0 global cluster_interconnect ens33 192.168.10.0 global public -
两台节点修改hosts文件
#public ip 192.168.10.221 rac1 192.168.10.222 rac2 -
两台节点修改网卡配置文件
[root@rac1 ~]# vi /etc/sysconfig/network-scripts/ifcfg-ens33 ipaddr=192.168.10.221 gateway=192.168.10.254 [root@rac2 ~]# vi /etc/sysconfig/network-scripts/ifcfg-ens33 ipaddr=192.168.10.222 gateway=192.168.10.254 -
重启网络服务
vip地址依赖于public地址，所以上面修改地址之后，需要重启网络服务，让ens33网卡获取新的ip，修改虚拟机里网卡连接方式，由桥接修改为nat [root@rac1 ~]# systemctl restart network [root@rac2 ~]# systemctl restart network
4，修改vip
-
两节点修改hosts文件
#vip 192.168.10.223 rac1-vip 192.168.10.224 rac2-vip -
修改集群vip配置并启动服务
[root@rac1 ~]# srvctl modify nodeapps -n rac1 -a 192.168.10.223/255.255.255.0/ens33 [root@rac1 ~]# srvctl start vip -n rac1 [root@rac1 ~]# srvctl start listener -n rac1
5，修改scan ip
-
修改hosts文件
#scanip 192.168.10.225 scan -
修改集群scan ip并启动服务
[root@rac1 ~]# srvctl modify scan -n scan [root@rac1 ~]# srvctl start scan [root@rac1 ~]# srvctl start scan_listener
6，修改private ip
-
两台节点备份profile.xml
[grid@rac1 ~]$ cd /oracle/app/11.2.0/grid/gpnp/rac1/profiles/peer/ [grid@rac1 ~]$ cp -p profile.xml profile.xml.bak [grid@rac2 ~]$ cd /oracle/app/11.2.0/grid/gpnp/rac1/profiles/peer/ [grid@rac2 ~]$ cp -p profile.xml profile.xml.bak -
查看当前集群网卡接口信息
[root@rac1 ~]# oifcfg getif ens33 192.168.10.0 global public ens34 10.0.0.0 global cluster_interconnect -
加入新的private ip
[root@rac1 ~]# oifcfg setif -global ens34/172.0.0.0:cluster_interconnect [root@rac1 ~]# oifcfg getif ens33 192.168.10.0 global public ens34 10.0.0.0 global cluster_interconnect ens34 172.0.0.0 global cluster_interconnect -
两台节点关闭并禁用crs
[root@rac1 ~]# crsctl stop crs [root@rac1 ~]# crsctl disable crs [root@rac2 ~]# crsctl stop crs [root@rac2 ~]# crsctl disable crs -
修改hosts文件
#private ip 172.0.0.221 rac1-priv 172.0.0.222 rac2-priv -
修改ens34网卡配置
[root@rac1 ~]# vi /etc/sysconfig/network-scripts/ifcfg-ens34 ipaddr=172.0.0.221 gateway=172.0.0.254 [root@rac2 ~]# vi /etc/sysconfig/network-scripts/ifcfg-ens34 ipaddr=172.0.0.222 gateway=172.0.0.254 -
重启网络服务
虚拟机修改网卡“仅主机”网卡的网段为172.0.0.0后，重启网络服务 [root@rac1 ~]# systemctl restart network [root@rac2 ~]# systemctl restart network -
两台节点启动crs
[root@rac1 ~]# crsctl enable crs [root@rac1 ~]# crsctl start crs [root@rac2 ~]# crsctl enable crs [root@rac2 ~]# crsctl start crs -
删除旧的private ip
[root@rac1 ~]# oifcfg delif -global ens34/10.0.0.0
九、日常维护
-
关闭crs软件自动启动
[root@rac1 ~]# crsctl disable crs -
sqlplus显示登陆的用户名和实例名
[oracle@rac1:/home/oracle]$cd $oracle_home/sqlplus/admin [oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/sqlplus/admin]$vi glogin.sql -- description set sqlprompt "_user'@'_connect_identifier>" [oracle@rac1:/oracle/app/oracle/product/11.2.0/db_1/sqlplus/admin]$sqlplus / as sysdba sys@orcl1> -
建库后执行sql
alter profile default limit password_life_time unlimited; create pfile='/tmp/db.ora' from spfile; alter system set "_ash_size"=25165824 scope=spfile; alter system set "_smu_debug_mode"=134217728 scope=spfile; alter system set "_gc_policy_time"=0 scope=spfile; alter system set "_px_use_large_pool"=true scope=spfile; alter system set "_memory_imm_mode_without_autosga"=false scope=spfile; alter system set "_undo_autotune"=false scope=spfile; alter system set "_use_adaptive_log_file_sync"=false scope=spfile; alter system set "_gc_undo_affinity"=false scope=spfile; alter system set "_serial_direct_read"=never scope=spfile sid='*'; alter system set db_files=1000 scope=spfile sid='*'; alter system set open_cursors=2000 sid='*'; alter system set session_cached_cursors=300 scope=spfile sid='*'; alter system set processes=2000 scope=spfile sid='*'; alter system set control_file_record_keep_time=60 scope=spfile sid='*'; alter system set resource_limit=true scope=spfile sid='*'; alter system set audit_trail=none scope=spfile sid='*'; alter system set undo_retention=10800 scope=spfile sid='*'; alter system set event='28401 trace name context forever,level 1','10949 trace name context forever,level 1' scope=spfile; alter system set sec_case_sensitive_logon=true sid='*'; alter system set pre_page_sga=false scope=spfile sid='*'; alter system set parallel_force_local=true scope=spfile sid='*'; alter system set result_cache_max_size=0 scope=spfile sid='*'; alter system set deferred_segment_creation=false scope=spfile sid='*'; alter system set fast_start_parallel_rollback=high scope=spfile sid='*'; alter system set parallel_execution_message_size=16384 scope=spfile sid='*'; alter system set parallel_max_servers=80 scope=spfile sid='*'; alter system set parallel_min_servers=0 scope=spfile sid='*'; -
增加redo log
查看当前redo log大小和数量，每个线程共2组，每组1个100m日志成员 sys@orcl1>set lines 200 sys@orcl1>col member for a120 sys@orcl1>select group#,thread#,bytes/1024/1024 m,status from v$log; group# thread# m status ---------- ---------- ---------- ---------------- 1 1 100 current 2 1 100 inactive 3 2 100 current 4 2 100 unused sys@orcl1>select group#,member from v$logfile order by 1,2; group# member ---------- ------------------------------------------ 1 data/orcl/onlinelog/group_1.261.1103016185 2 data/orcl/onlinelog/group_2.262.1103016185 3 data/orcl/onlinelog/group_3.265.1103016289 4 data/orcl/onlinelog/group_4.266.1103016289 现在为每个线程增加1个日志组，每组1个100m的redo log sys@orcl1>alter database add logfile thread 1 group 5 (' data') size 100m; sys@orcl1>alter database add logfile thread 2 group 6 (' data') size 100m; sys@orcl1>select group#,thread#,bytes/1024/1024 m,status from v$log; group# thread# m status ---------- ---------- ---------- ---------------- 1 1 100 current 2 1 100 inactive 3 2 100 current 4 2 100 unused 5 1 100 unused 6 2 100 unused 6 rows selected. sys@orcl1>select group#,member from v$logfile order by 1,2; group# member ---------- ---------------------------------------------- 1 data/orcl/onlinelog/group_1.261.1103016185 2 data/orcl/onlinelog/group_2.262.1103016185 3 data/orcl/onlinelog/group_3.265.1103016289 4 data/orcl/onlinelog/group_4.266.1103016289 5 data/orcl/onlinelog/group_5.268.1103017997 6 data/orcl/onlinelog/group_6.269.1103018015 -
增加控制文件
建库后默认只有1个控制文件 sys@orcl1>show parameter control name type value ------------------------------------ ----------- ------------------------------ control_file_record_keep_time integer 7 control_files string data/orcl/controlfile/current .260.1103016183 control_management_pack_access string diagnostic tuning 停止数据库 [oracle@rac1:/home/oracle]$srvctl stop instance -d orcl -i orcl1,orcl2 -o immediate [root@rac1 ~]# crsctl status res -t ora.orcl.db 1 offline offline instance shutdown 2 offline offline instance shutdown 启动数据库到nomount [oracle@rac1:/home/oracle]$srvctl start instance -d orcl -i orcl1,orcl2 -o nomount; [root@rac1 ~]# crsctl status res -t ora.orcl.db 1 online intermediate rac1 dismounted 2 online intermediate rac2 dismounted sys@orcl1>col host_name for a10 sys@orcl1>col instance_name for a10 sys@orcl1>select instance_name,host_name,status from gv$instance; instance_n host_name status ---------- ---------- ------------------------ orcl1 rac1 started orcl2 rac2 started [oracle@rac1:/home/oracle]$rman target / nocatalog rman> restore controlfile to ' data' from ' data/orcl/controlfile/current.260.1103016183'; 进入asmcmd查看恢复出来的控制文件名称 [grid@rac1:/home/grid]$asmcmd asmcmd> cd data/orcl/controlfile asmcmd> ls current.260.1103016183 current.270.1103021121 登陆数据库修改spfile增加控制文件路径 sys@orcl1>alter system set control_files=' data/orcl/controlfile/current.260.1103016183',' data/orcl/controlfile/current.270.1103021121' scope=spfile; 重启数据库之后查看控制文件数量 [oracle@rac1:/home/oracle]$srvctl stop instance -d orcl -i orcl1,orcl2 -o immediate [oracle@rac1:/home/oracle]$srvctl start instance -d orcl -i orcl1,orcl2 sys@orcl1>show parameter control name type value ------------------------------------ ----------- ------------------------------ control_file_record_keep_time integer 60 control_files string data/orcl/controlfile/current .260.1103016183, data/orcl/co ntrolfile/current.270.11030211 21 control_management_pack_access string diagnostic tuning -
配置归档
配置归档路径为asm磁盘组 fra sys@orcl1>alter system set log_archive_dest_1='location= fra' scope=spfile sid='*'; [oracle@rac1:/home/oracle]$srvctl stop instance -d orcl -i orcl1,orcl2 -o immediate [oracle@rac1:/home/oracle]$srvctl start instance -d orcl -i orcl1,orcl2 -o mount; sys@orcl1>alter system switch logfile; sys@orcl1>alter system switch logfile; sys@orcl2>alter system switch logfile; sys@orcl2>alter system switch logfile; sys@orcl1>archive log list; database log mode archive mode automatic archival enabled archive destination fra oldest online log sequence 2 next log sequence to archive 4 current log sequence 4 sys@orcl2>archive log list; database log mode archive mode automatic archival enabled archive destination fra oldest online log sequence 3 next log sequence to archive 5 current log sequence 5 asmcmd> pwd fra/orcl/archivelog/2022_04_26 asmcmd> ls thread_1_seq_4.258.1103023263 thread_1_seq_5.259.1103023265 thread_1_seq_6.260.1103023267 thread_2_seq_2.256.1103023243 thread_2_seq_3.257.1103023261 thread_2_seq_4.261.1103023267
【米乐app官网下载的版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
