一、客户环境描述

架构：2节点rac
版本: rehat 7.9   oracle rac 19.19

二、客户问题反馈

客户反馈，节点2 undo表空间使用率过高，且使用率呈上升趋势，但应用使用目前反馈正常。

三、处理过程

1. 查看表空间使用率

结论：undotbs1 使用率正常，undotbs2 使用率过高。

临时解决方法：
考虑到使用率已经超过90%，且剩余空间不是很大，先通过增加数据文件方式快速降低使用率，避免undo空间不足，导致更严重的问题。

alter tablespace undotbs2 add datafile ' data' size 30g;

2. 查看undo 使用具体情况

select a.tablespace_name,
       round(c.active_undo,2)  "active_undo(mb)",
       round(a.unexpired_undo,2) "unexpired_undo(mb)",
       b.total_undo "total_undo(mb)",
       trunc(active_undo / total_undo * 100, 2) || '%' active_undo_pct,
       trunc(unexpired_undo / total_undo * 100, 2) || '%' unexpired_undo_pct
  from (select nvl(sum(bytes / 1024 / 1024), 0) unexpired_undo, tablespace_name
          from dba_undo_extents
         where status = 'active' or status='unexpired'
         group by tablespace_name) a,
       (select tablespace_name, sum(bytes / 1024 / 1024) total_undo
          from dba_data_files
         group by tablespace_name) b,
       (select nvl(sum(bytes / 1024 / 1024), 0) active_undo, tablespace_name
          from dba_undo_extents
         where status = 'active'
         group by tablespace_name) c
 where a.tablespace_name = b.tablespace_name
 and a.tablespace_name=c.tablespace_name( )
 order by tablespace_name ;

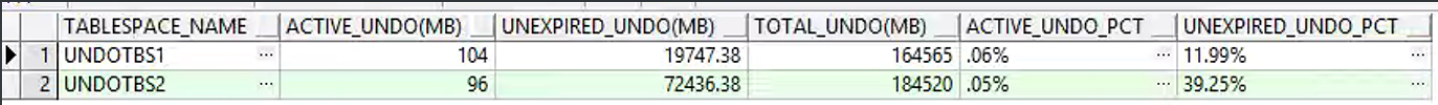

结论：undotbs1 、undotbs2  active 部分都不高，说明undotbs2 当前使用率高，不是active undo部分造成的，但是可以看到undotbs2 unexpired 部分比undotbs1明显多很多，说明导致undotbs2使用率高的原因是undotbs2 存在较多未过期部分，undo不释放。

3. 查看v$undostat 视图

select a.inst_id,a.begin_time,a.end_time,a.activeblks,a.expiredblks,a.unexpiredblks,a.tuned_undoretention
from gv$undostat a where inst_id=1;

select a.inst_id,a.begin_time,a.end_time,a.activeblks,a.expiredblks,a.unexpiredblks,a.tuned_undoretention
from gv$undostat a where inst_id=2;

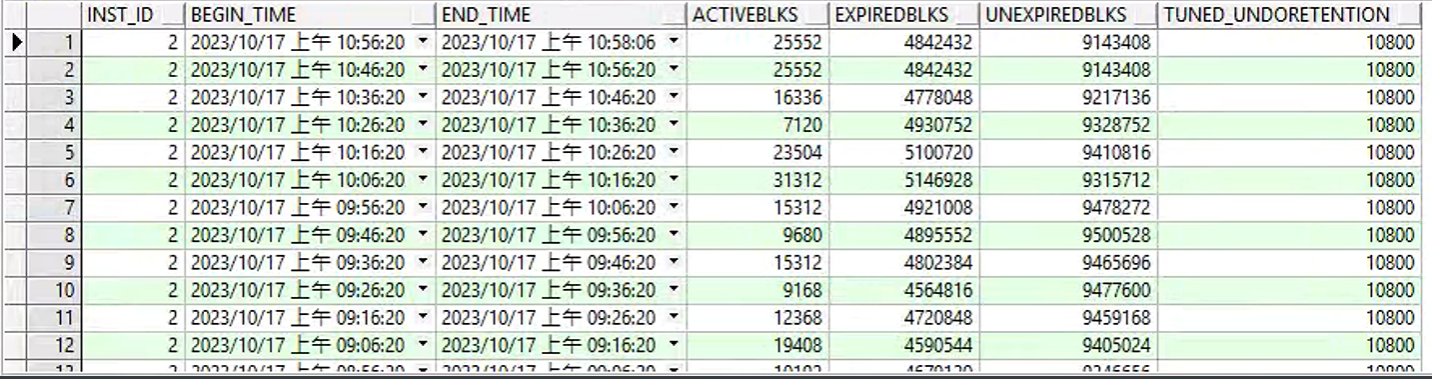

结论：undotbs1 、undotbs2 tuned_undoretention 都是10800，说明导致undotbs2 不释放并不是因为tuned_undoretention 变大导致的。但是可以看到，undotbs2 中的activeblks、expiredblks、unexpiredblks 部分都比undotbs1 大很多，说明undotbs2 真实使用的undo 确实就是比undotbs1 多，说明undotbs2中可能存在消耗undo的sql语句，但是节点1不存在。

4. 分析awr报告

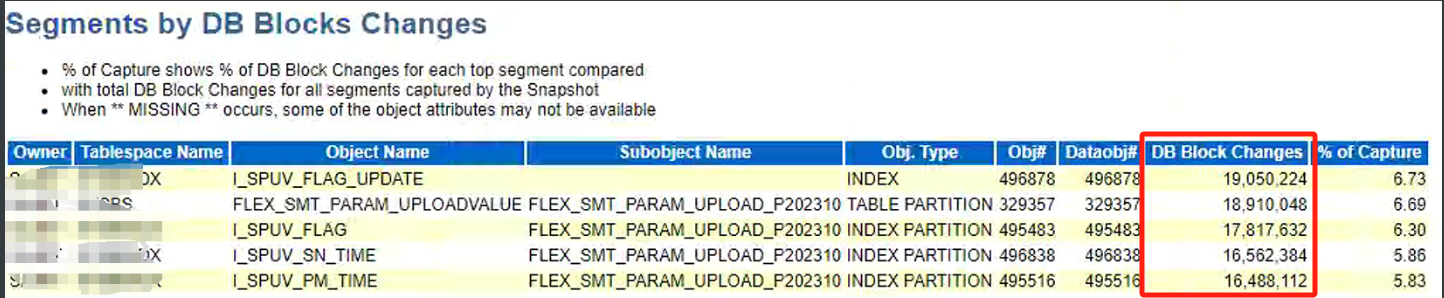

– 节点1

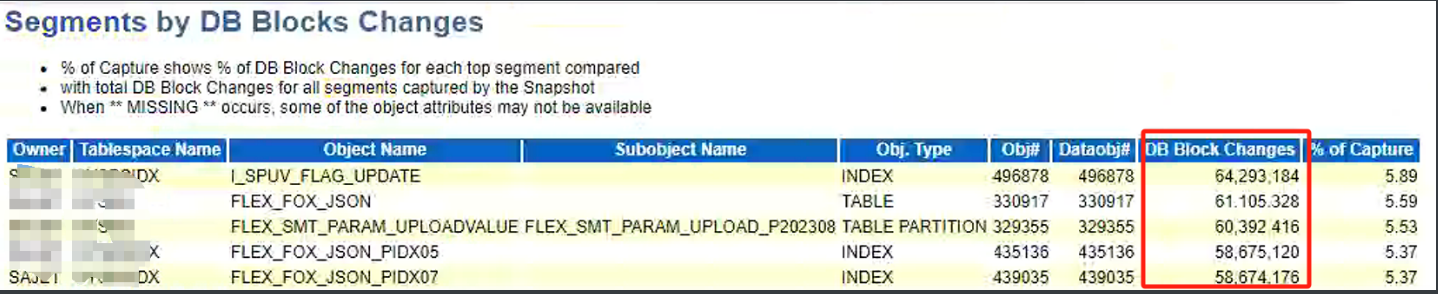

–节点2

sql> select table_name,index_name from dba_indexes where index_name='i_spuv_flag_update';
  table_name				 index_name
 ---------------------------------------- ---------
  flex_smt_param_uploadvalue		 i_spuv_flag_update

结论：通过segments by db blocks changes 对比可以看到，变化量最多的块都是flex_smt_param_uploadvalue表，但是节点2变化量明显比节点1 大很多，且节点2 还存在flex_fox_json 表变化量大。

5. 查看归档日志切换频率

select thread#,substr(to_char(first_time, 'mm/dd/rr hh:mi:ss'),1,5) day,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'00',1,0)) h00,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'01',1,0)) h01,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'02',1,0)) h02,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'03',1,0)) h03,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'04',1,0)) h04,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'05',1,0)) h05,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'06',1,0)) h06,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'07',1,0)) h07,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'08',1,0)) h08,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'09',1,0)) h09,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'10',1,0)) h10,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'11',1,0)) h11,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'12',1,0)) h12,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'13',1,0)) h13,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'14',1,0)) h14,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'15',1,0)) h15,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'16',1,0)) h16,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'17',1,0)) h17,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'18',1,0)) h18,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'19',1,0)) h19,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'20',1,0)) h20,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'21',1,0)) h21,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'22',1,0)) h22 ,
       sum(decode(substr(to_char(first_time, 'mm/dd/rr hh24:mi:ss'),10,2),'23',1,0)) h23,
       count(*) total
from v$log_history  a
   where first_time>=to_char(sysdate-7)
group by thread#,substr(to_char(first_time, 'mm/dd/rr hh:mi:ss'),1,5)
order by thread#,substr(to_char(first_time, 'mm/dd/rr hh:mi:ss'),1,5) desc;

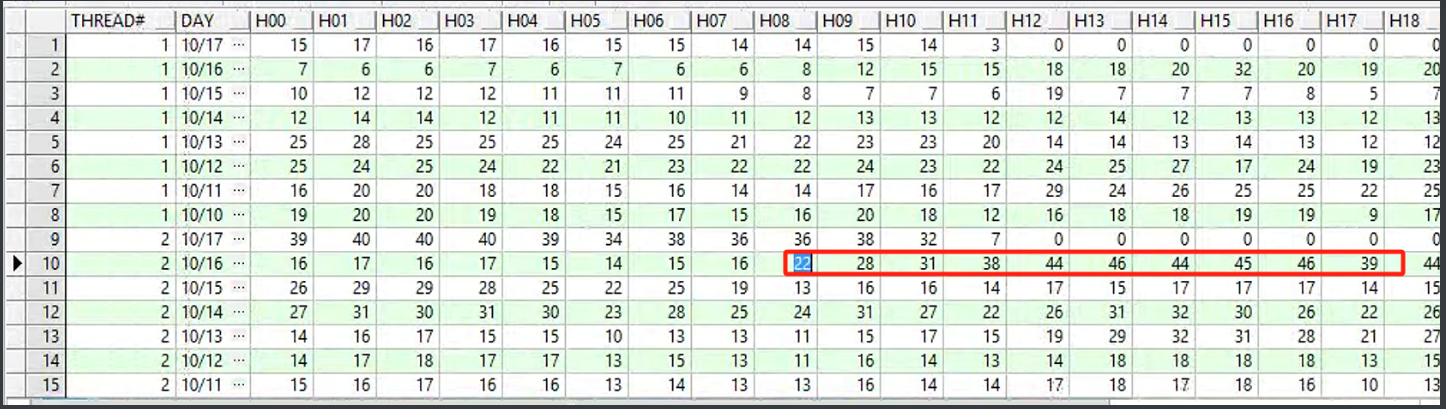

 分析：可以看到节点1 日志切换频率相差变大，节点2从10/16号8点开始，切换频率比平时多出很多，初步判断节点2 undo使用率比节点1高和此相关。

6. 查找相关语句

delete from flex_smt_param_uploadvalue where update_time < sysdate - 30 and rownum<1000000；
delete from flex_fox_json where update_time < sysdate - 30 and rownum <1000000；

结论：通过awr报告，找到以上相关的2个delete语句，且是job执行的，根据和应用沟通这2个job 是刚启用的。


综上：导致节点2 undotbs2 使用率过高的原因就是2个delete 语句造成的，和应用沟通，先暂停该job。
